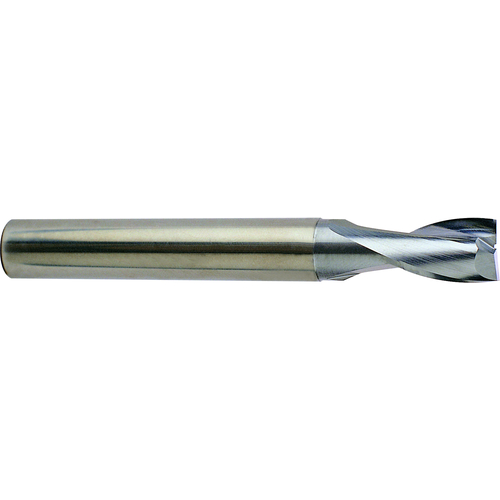

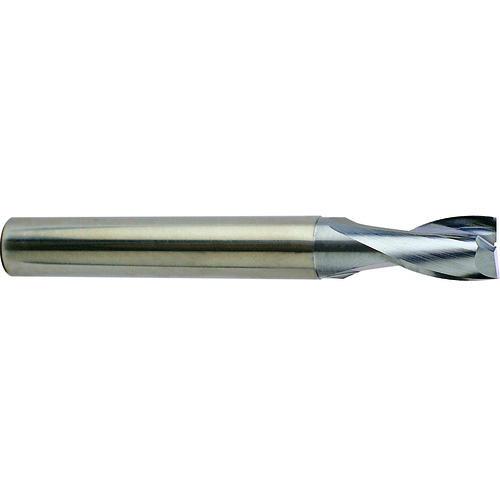

Corner Radius End Mill; 20 mm Dia. × 25 mm LOC × 20 mm Shank Dia. × 100 mm OAL ; 2 FL ; Carbide ; TiCN ; Series EG930
| Cutting Diameter (DC) | 20 mm | Usable Length (LU) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 25 mm | Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 100 mm | Neck Diameter (DN) | 19.5 mm |
| Cutting Edge Material | Carbide | Tool Type | Corner Radius 25 Degree Helix Stub Cut Length TiCN Coated |
| Coating | TiCN | Decimal Equivalent | 0.7874″ |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 25 Degrees | Series/List # | EG930 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1.25
Package Height
1.25
Package Weight
0.844
