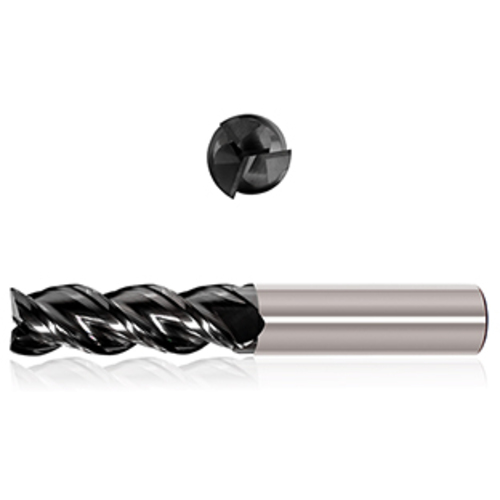

3/4X3/4X4X7 3FL RH .030R
3 Flute End Mill for Finishing, High Performance, Center Cutting, 45° Helix For Aluminum and Non-Ferrous Alloys

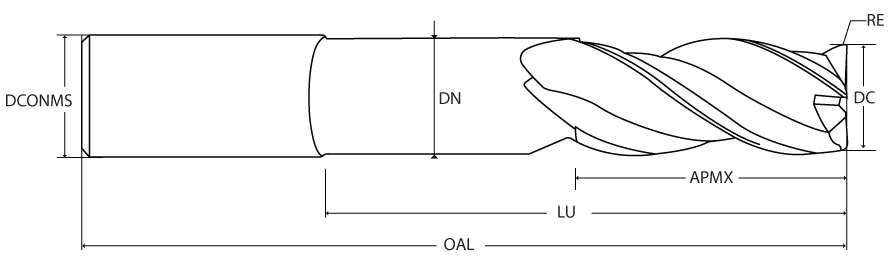

| Cutting Diameter (DC) | 3/4″ | Corner Radius (RE) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Grade | H5005 Exxtral Carbon (DLC) |
| Depth of Cut Maximum (APMX) | 4″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 7″ | Maximum Feed per Tooth (fz(max)) | 0.008 ″/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
| Shank Type | Round | Shank Standard | h6 |
| End Shape | Corner Radius | Body Material | Carbide |
| Usable Length (LU) | 4″ | Decimal Equivalent | 0.75″ |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Application | | Finish | HEM | Semi Finish | Shouldering | | Series/List # | 345 |
Product Features
| Family Description | 3 Flute End Mill for Finishing, High Performance, Center Cutting, 45° Helix For Aluminum and Non-Ferrous Alloys | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
LocalField10
0
Package Weight
2.016
