3/4X3/4X1_1/4X4X6 5FL RH_

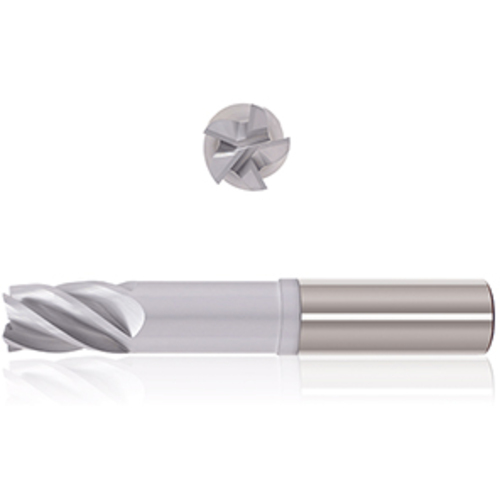

SQ End Mill; 3/4″ Dia. × 1-1/4″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 5 FL ; 4″ LBS ; Carbide ; AITiCrN ; Series 558
| Cutting Diameter (DC) | 3/4″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Grade | H5008 Exxtral Silver |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Neck Diameter (DN) | 0.725″ |
| Overall Length (OAL) | 6″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.011 ″/tooth |
| Coating | AITiCrN | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 5 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 35 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.75″ |
| End Shape | Square | Measurement Type | Inch |
| Usable Length (LU) | 4″ | Series/List # | 558 |
| Applicable Material | | Cast Iron | Hard Materials | Stainless Steel | Steel | Super-Alloys / Titanium | |
Product Features
| Family Description | 5 Flute End Mill for Finishing, Variable Pitch, Reduced NeckCenter Cutting, 35° Helix Angle, Traditional Milling For Ferrous & Exotic Alloys | ItemRemark | click here for cutting data |
| Country of Origin | USA |
Shipping Info
Package Weight
1.637
