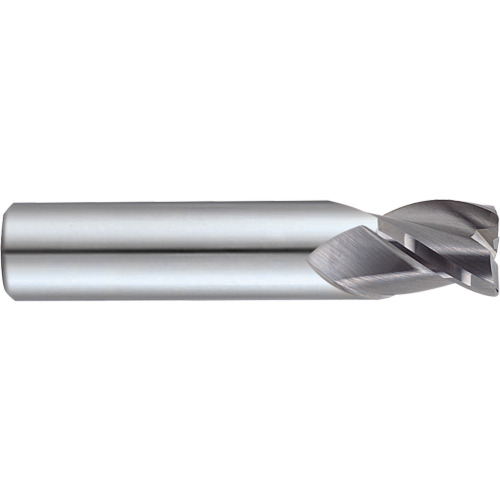

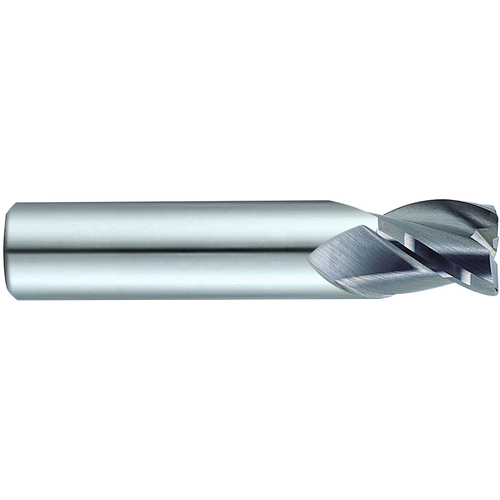

Corner Radius End Mill; 7/16″ Dia. × 9/16″ LOC × 7/16″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; TiAlN ; Series E5105
| Cutting Diameter (DC) | 7/16″ | Applicable Material | | Steel | Stainless Steel | |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Corner Radius (RE) | 0.017″ |
| Depth of Cut Maximum (APMX) | 9/16″ | Tool Type | 3 Flute Corner Radius |
| Overall Length (OAL) | 2-1/2″ | Style | Corner Radius 35 Degrees Helix Stub Length "HOSS" |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.4375″ |
| Coating | TiAlN | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | E5105 |
| Flute Helix Angle (FHA) | 35 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.182
