5G1D-15R01

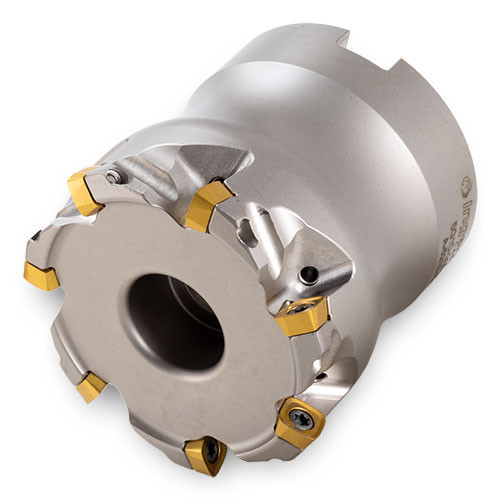

Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1-1/2″ OAL × 0.04″ LOC ; 6 Inserts ; 12 Degrees
| Cutting Diameter (DC/DCX) | 1-1/2″ | Overall Length (OAL) | 1-1/2″ |
| Cutting Diameter (DC) | 1.186″ | Ramping Angle Maximum (RMPX) | 1.6 Degrees |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | |
| Depth of Cut Maximum (APMX) | 0.04″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
Product Features
| Family Description | 12° Hi-feed rougher Multiple insert styles for application flexibility .040″ Insert wiper, face and O.D. Extremely free cutting! Excellent performance & economy! | Country of Origin | USA |
Shipping Info
Package Weight
0.481
