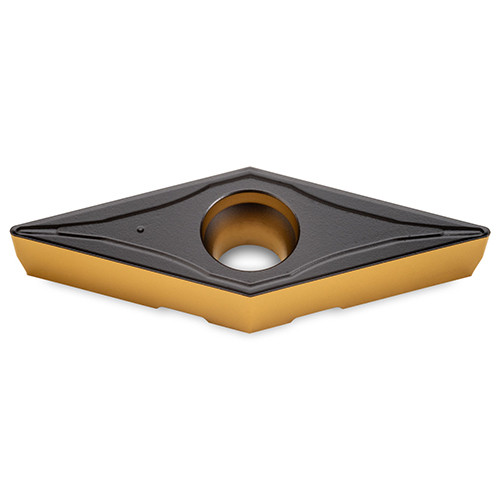

VBMX330.5FG TT5080
| Corner Radius (RE) | 0.008″ | Max. Turning Feed (ft(max)) | 0.008″ |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Number of Cutting Edges | 2 |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Direction (HAND) | Neutral |
| Min D.O.C. | 0.012″ | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.06″ | Body Material | Carbide |
| Min. Turning Feed (ft(min)) | 0.002″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
11.3
