HSW06R032S10-02W10.0C

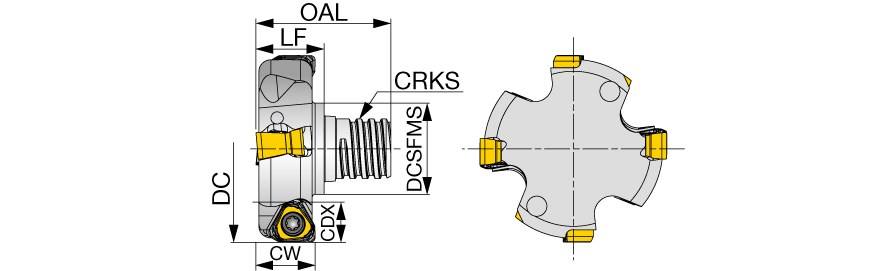

| Cutting Diameter (DC) | 32 mm | Measurement Type | Metric |
| Cutting Width (CW) | 10 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Cutting Depth Maximum (CDX) | 7.3 mm | Body Material | Steel |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 | Cutting Item Count (CICT) | 4 |
| Connection Thread Nominal Size Machine Side (THSZMS) | S10 | Functional Length (LF) | 11.5 mm |
| Overall Length (OAL) | 22.8 mm | Master Insert Identification (MIID) | WNGU060308TN-MJ |
| Application | | Slot Milling | |
Product Features

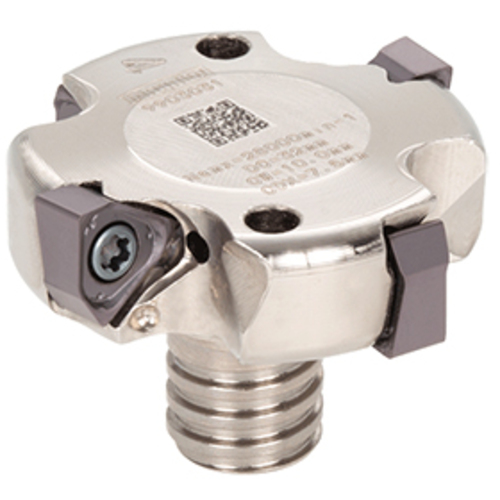

| Family Description | Slot mill with TungMeister connection | Country of Origin | JAPAN |
| Remarks | For how to assemble the cutter body to the shank, click on "More Info". Wrench sold separately. |
Shipping Info
Package Weight
0.000
Related Documentation

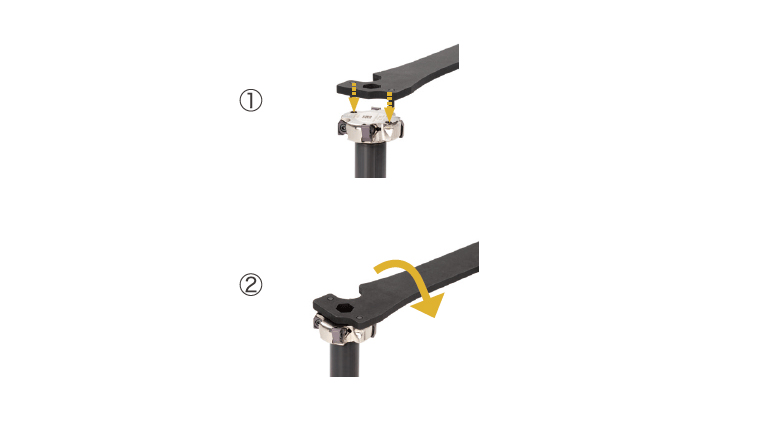

[Modular head] @(1) Insert the pins to the holes on the cutter body. @(2) Grip the handle and rotate to clamp. A hex torque wrench may be used as an alternative torque method. In this case, insert the Allen key in the hexagonal hole on the dedicated wrench and rotate.
