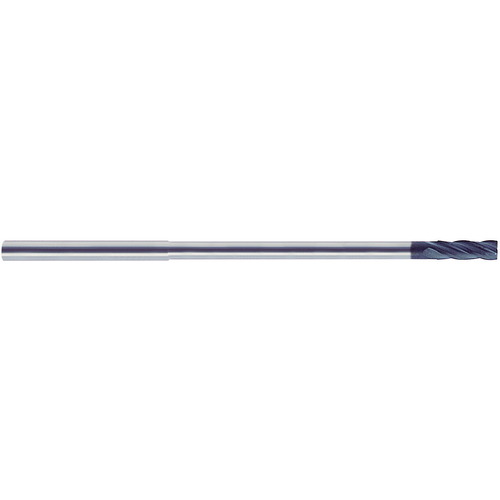

Corner Radius End Mill; 1/16″ Dia. × 3/16″ LOC × 1/8″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; Diamond ; Series ElB06
| Cutting Diameter (DC) | 1/16″ | Usable Length (LU) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 3/16″ | Corner Radius (RE) | 0.01″ |
| Overall Length (OAL) | 3″ | Neck Diameter (DN) | 0.057″ |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0625″ |
| Coating | CVDDIA | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | ElB06 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Corner Radius |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.375
Package Width
0.625
Package Height
0.625
Package Weight
0.027
