TRGSC01I010-03-00

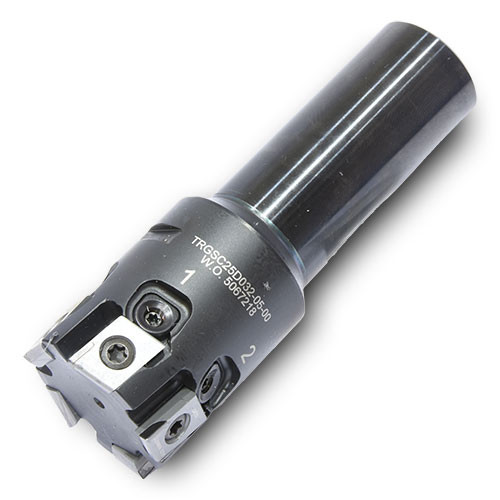

Indexable End Mill; 1″ Dia. × 0.433″ LOC × 1″ Shank Dia. × 3.937″ OAL
| Cutting Diameter (DC/DCX) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 0.95″ | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 3 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.433″ | Body Material | Steel |
| Overall Length (OAL) | 3.937″ | Protruding Length (LPR) | 2.244″ |
| Application | | Chamfering | Facing | Slanted Shoulder & Chamfer | | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1″ |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Country of Origin | Italy |
Shipping Info
Package Weight
0.001
