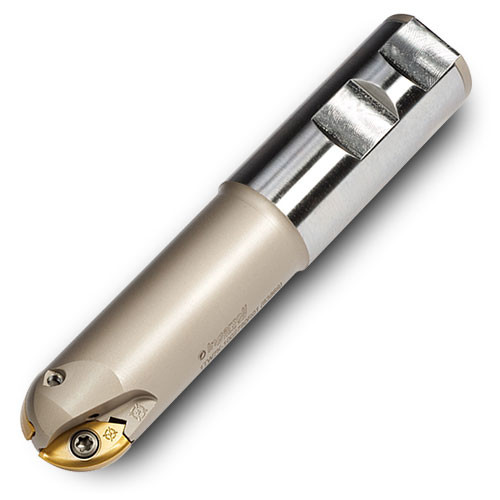

1TW8J-0701580R01
Indexable End Mill; 3/4″ Dia. × 0.51″ LOC × 1″ Shank Dia. × 6″ OAL × 1.53″ LU
| Cutting Diameter (DC/DCX) | 3/4″ | Usable Length (LU) | 1.53″ |
| Cutting Diameter (DC) | 3/4″ | Corner Radius (RE) | 3/8″ |
| Cutting Item Count (CICT) | 2 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.51″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 6″ | Measurement Type | Inch |
| Application | | Helical Interpolation | Rampdown | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Protruding Length (LPR) | 2″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Roughing Ball Nose End Mill, 2 Effective Insert with 2 indexes Max. Depth of Cut: Full Radius Insert Corner: .312″, .500″, .750″R Semi & Heavy Duty Roughing Center web for added strength | Country of Origin | S.Korea |
Shipping Info
Package Weight
1.202
