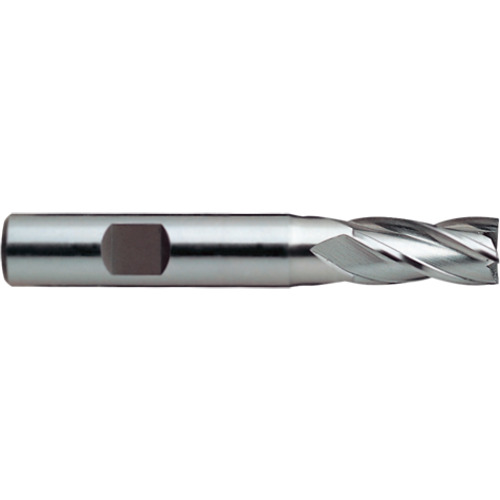

Square End Mill; 1″ Dia. × 3″ LOC × 1″ Shank Dia. × 5-1/2″ OAL ; 4 FL ; HSSCo8 ; Bright ; Series E2039
SQ End Mill; 1″ Dia. × 3″ LOC × 1″ Shank Dia. × 5-1/2″ OAL ; 4 FL ; HSSCo8 ; Uncoated ; Series E2039
| Cutting Diameter (DC) | 1″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 3″ | Tool Type | HSSCo8, 4 Flute Medium Length Center Cutting |
| Overall Length (OAL) | 5-1/2″ | Length Group | Regular |
| Cutting Edge Material | HSSCo8 | Decimal Equivalent | 1″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | E2039 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.25
Package Width
1.5
Package Height
1.5
Package Weight
0
