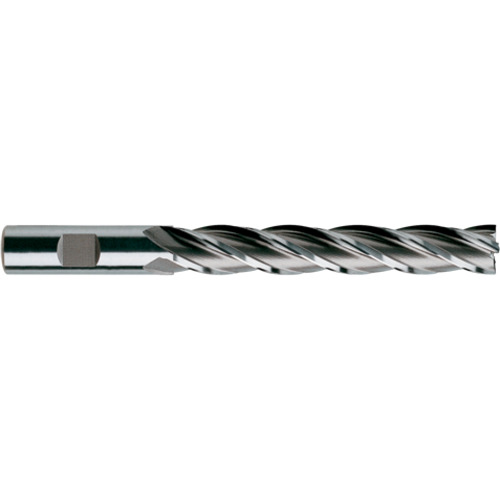

Square End Mill; 5/16″ Dia. × 2″ LOC × 3/8″ Shank Dia. × 3-3/4″ OAL ; 4 FL ; HSSCo8 ; Bright ; Series E2036
SQ End Mill; 5/16″ Dia. × 2″ LOC × 3/8″ Shank Dia. × 3-3/4″ OAL ; 4 FL ; HSSCo8 ; Uncoated ; Series E2036
| Cutting Diameter (DC) | 5/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 2″ | Tool Type | HSSCo8 and HSS, 4 Flute Extra Long Length |
| Overall Length (OAL) | 3-3/4″ | Length Group | Extra Long |
| Cutting Edge Material | HSSCo8 | Decimal Equivalent | 0.3125″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | E2036 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | No |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
0.75
Package Height
0.75
Package Weight
0
