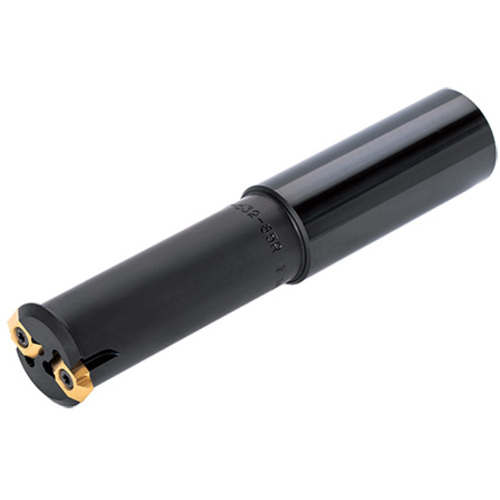

D50-D42-100R

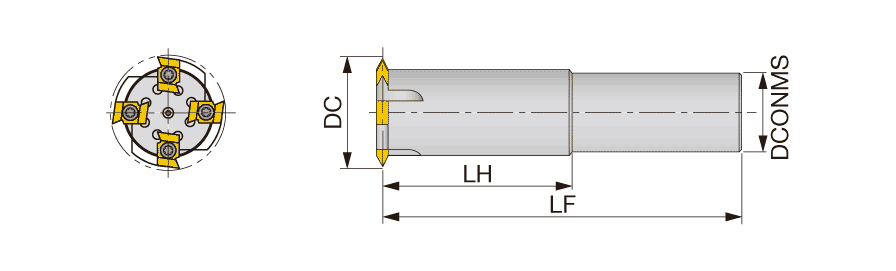

| Cutting Diameter (DC) | 1.9685″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.654″ | Tool Type | Indexable thread mills |
| Overall Length (OAL) | 7.48″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | T1-R28 | Cutting Item Count (CICT) | 4 |
| Body Material | Steel | Head Length (LH) | 3.937″ |
| Application | | Ext. Thread Milling | Int. Thread Milling | | Thread Size | M58 - M68 |
Product Features
| Family Description | Single tooth threading mills | Country of Origin | Japan |
| Remarks | Climb milling is recommended. When threading a blind hole, use the right hand cutter in right hand rotation. Cut up from the bottom to prevent chip recutting. When machining internal threads from the mouth, use the left hand cutter in left hand rotation. |
Shipping Info
Package Weight
2110
