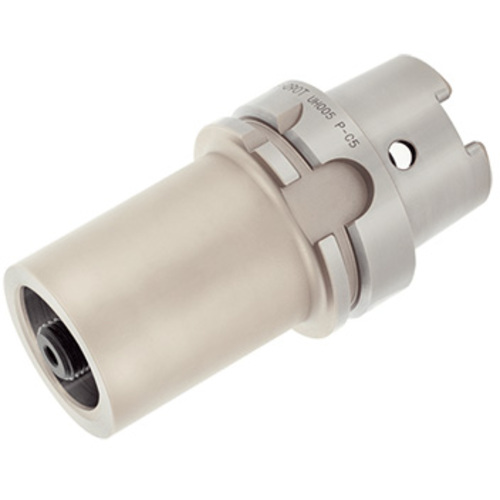

C5ADHSKA100WHX100

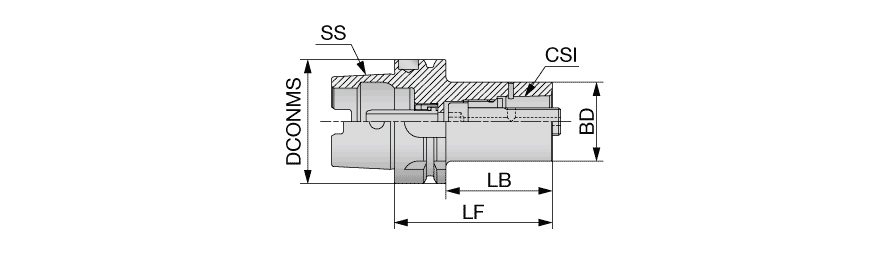

| Shank Size (SS) | 100 | Application | | Face contact interface | |
| Body Diameter (BD) | 50 mm | Body Material | Steel |
| Body Length (LB) | 71 mm | Measurement Type | Metric |
| Functional Length (LF) | 100 mm | Tightening Torque | 95 Nm |
| Connection Size (CSI) | C5 | Tool Type | Interchangeable Milling Connectors |
Product Features
| Family Description | TungCap Holders for HSK shank | Country of Origin | ITALY |
| Remarks | Torque: Recommended torque (Nm) for clamping Applicable for 7 MPa coolant To enable clamping the part to be attached, first remove the cooling tube. Option: Cooling tube wrench |
Shipping Info
Package Weight
0.000
