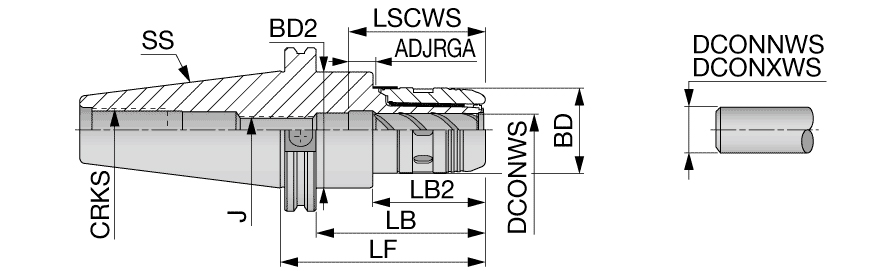

CAT40FCMAXIN1-1/4X4.16
| Body Diameter (BD) | 2.716″ | Shank Size (SS) | 40. |
| Body Length (LB) | 3.41″ | Tool Type | Caterpillar |
| Overall Length (OAL) | 4.16″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1/4″ |
| Connection Diameter Workpiece Side (DCONWS) | 1-1/4″ | Measurement Type | Inch |
| Connection Retention Knob Thread Size (CRKS) | 5/8-11 | Thread Designation Inside (THID) | M16 |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 1-1/4″ | Body Material | Steel |
| Application | | Tapered shape interface | |
Product Features

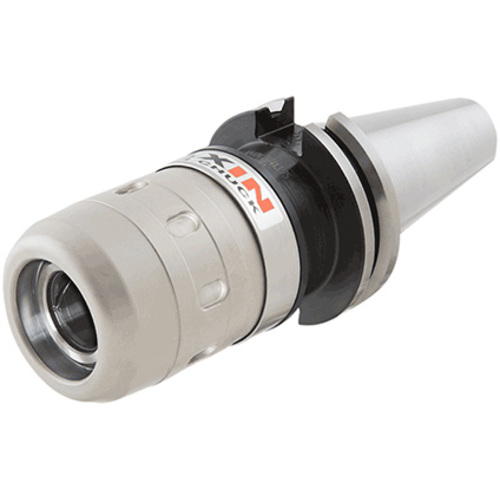

| Family Description | Power chuck holder with Caterpillar face contact AD tapered shank. | Country of Origin | ITALY |
| Remarks | Applicable for 10 MPa coolant. |
Shipping Info
Package Weight
0.000
