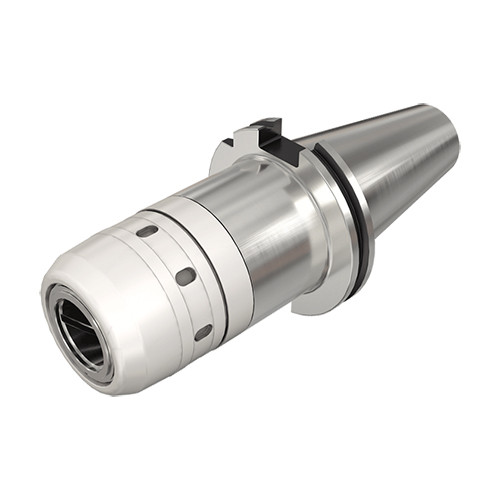

DIN6987140MAXIN20X95
| Body Diameter (BD) | 51 mm | Shank Size (SS) | 40. |
| Body Length (LB) | 76 mm | Tool Type | DIN 69871 |
| Overall Length (OAL) | 95 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm | Measurement Type | Metric |
| Connection Retention Knob Thread Size (CRKS) | M16 | Thread Designation Inside (THID) | M16 |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm | Body Material | Steel |
| Application | | Tapered shape interface | |
Product Features
| Family Description | TungMax endmill chuck holders with DIN69871 shank | Country of Origin | ISRAEL |
| Remarks | Add B for coolant through the flange. |
Shipping Info
Package Weight
3.810
