TJSHPCCAT40

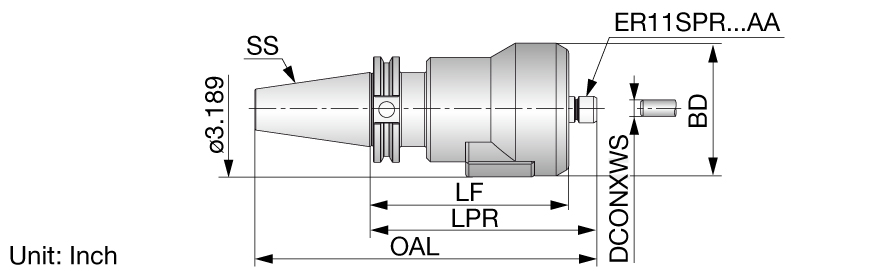

| Shank Size (SS) | CAT40 | Measurement Type | Inch |
| Functional Length (LF) | 4.724″ | Collet Size | ER11 |
| Protruding Length (LPR) | 5.394″ | Application | | Tapered shape interface | |
| Overall Length (OAL) | 8.11″ | Connection Diameter Machine Side (DCONMS) | 2.717″ |
| Body Diameter (BD) | 3.15″ | Body Material | Steel |
Product Features

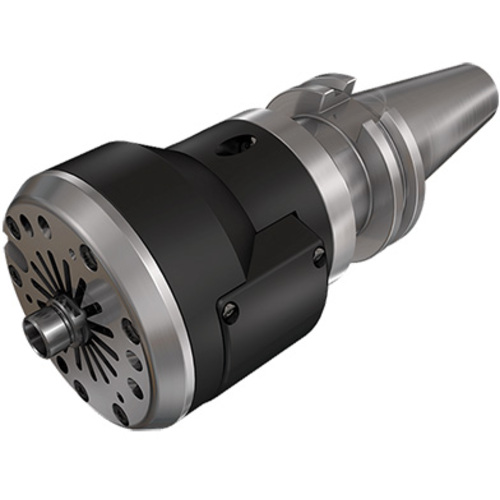

| Family Description | Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding. | Country of Origin | Israel |
| Remarks | Coolant pressure through machine spindle: Min. 1.5 MPa / Max. 7 MPa Min. flow rate: 10 l/min Max. tool shank diameter: 7.0 mm RPM range: 21,000 45,000 RPM (These are approximate RPM values depending on coolant pressure, flow rate, and type.) |
