TJSGJETST20

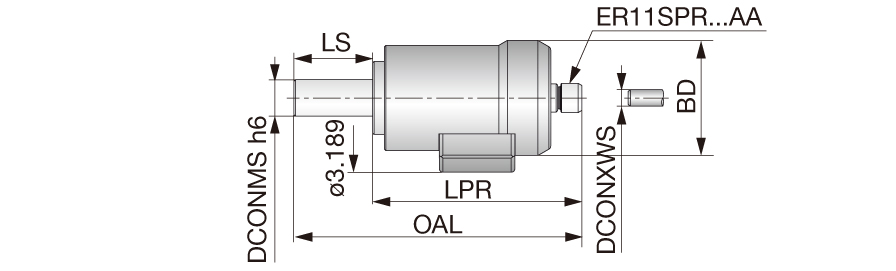

| Protruding Length (LPR) | 4.528″ | Collet Size | ER11 |
| Overall Length (OAL) | 6.22″ | Application | | Straight shape | |
| Body Diameter (BD) | 2.48″ | Connection Diameter Machine Side (DCONMS) | 1.693″ |
| Measurement Type | Inch | Body Material | Steel |
Product Features

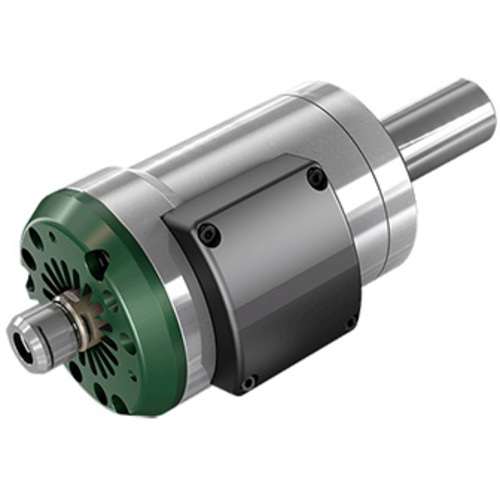

| Family Description | Coolant driven high speed compact spindles for small diameter tools on limited RPM machines. Can be used for semi finish and finish machining applications such as milling, drilling and grinding. | Country of Origin | Israel |
| Remarks | Coolant pressure through machine spindle: Min. 2 MPa / Max. 4 MPa Min. flow rate: 12 l/min Max. tool shank diameter: 7.0 mm RPM range: 35,000 55,000 RPM (These are approximate RPM values depending on coolant pressure, flow rate, and type.) |
Shipping Info
Package Weight
0.009
