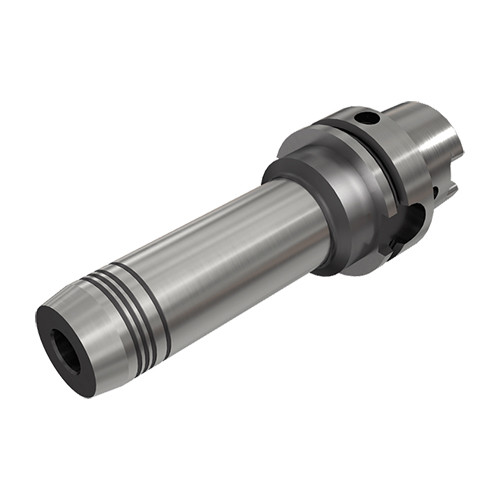

HSKA100HYDRO18X200
Hydraulic Holder ; 100 mm Shank Dia. ; 174 mm Body Length ; 40 mm Body Dia. ; 100. Shank Size ; 200 mm OAL ; Round Shank

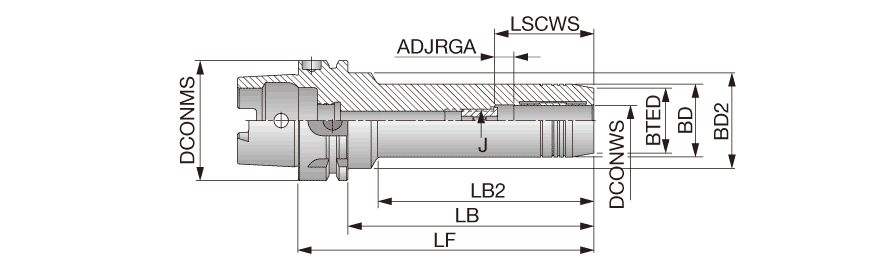

| Connection Diameter Machine Side (DCONMS) | 100 mm | Shank Type | Round |
| Body Length (LB) | 174 mm | Shank Size (SS) | 100. |
| Body Length_2 (LB_2) | 148 mm | Application | | Face contact interface | |
| Thread Designation Inside (THID) | M12x1 | Tool Type | HSK |
| Body Diameter (BD) | 40 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 50 mm | Body Taper End Diameter (BTED) | 36 |
| Overall Length (OAL) | 200 mm | Body Material | Steel |
| Clamping Length Workpiece Side (LSCWS) | 52 mm |
Product Features
| Family Description | TungHydro long projection hydaulic endmill chuck holders with HSK-A shank | Country of Origin | Germany |
| Remarks | Clamping wrench (wrench HYDRO HEX 4) should be ordered separately. Note: Available are reduction sleeves for 12, 20, 25 and 32 mm bore diameters. Chucking forces will significantly reduce if reduction sleeves are used (ordered separately). |
Shipping Info
Package Weight
3
