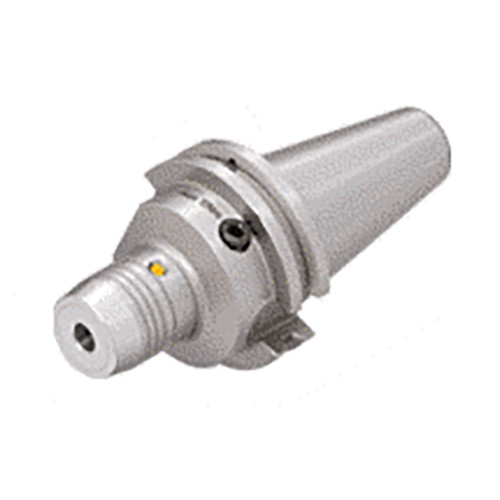

DIN6987140HYDRO6X68
Hydraulic Holder ; 49 mm Body Length ; 26 mm Body Dia. ; 40. Shank Size ; 68 mm OAL ; Round Shank
| Body Length (LB) | 49 mm | Shank Type | Round |
| Body Length_2 (LB_2) | 33 mm | Shank Size (SS) | 40. |
| Thread Designation Inside (THID) | M5 | Application | | Tapered shape interface | |
| Body Diameter (BD) | 26 mm | Tool Type | DIN 69871 |
| Body Diameter_2 (BD_2) | 50 mm | Measurement Type | Metric |
| Overall Length (OAL) | 68 mm | Body Taper End Diameter (BTED) | 23 |
| Clamping Length Workpiece Side (LSCWS) | 37 mm | Body Material | Steel |
Product Features
| Family Description | TungHydro hydaulic endmill chuck holders with DIN69871 shank | Country of Origin | GERMANY |
| Remarks | Clamping wrench (wrench HYDRO HEX 4) should be ordered separately. Note: Available are reduction sleeves for 12, 20, 25 and 32 mm bore diameters. Chucking forces will significantly reduce if reduction sleeves are used (ordered separately). |
Shipping Info
Package Weight
2.524
