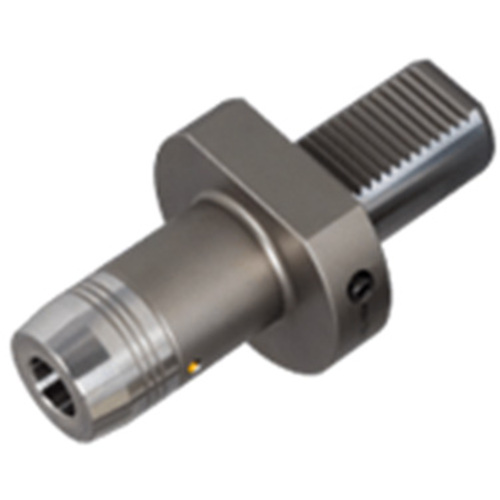

DIN6988040HYDRO20X95

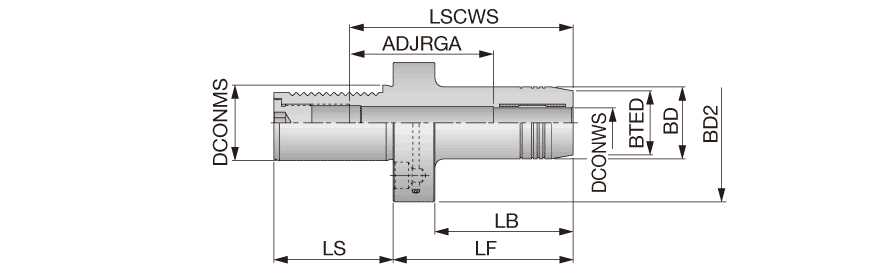

| Connection Diameter Machine Side (DCONMS) | 40 mm | Shank Size (SS) | 40. |
| Body Length (LB) | 73 mm | Application | | Straight shape | |
| Body Diameter (BD) | 42 mm | Tool Type | VDI-DIN69880 |
| Body Diameter_2 (BD_2) | 83 mm | Measurement Type | Metric |
| Overall Length (OAL) | 95 mm | Body Taper End Diameter (BTED) | 38 |
| Clamping Length Workpiece Side (LSCWS) | 130 mm | Body Material | Steel |
| Shank Type | Round |
Product Features
| Family Description | TungHydro hydaulic endmill chuck holders with DIN69880 shank | Country of Origin | GERMANY |
| Remarks | Clamping wrench (wrench HYDRO HEX 4) should be ordered separately. Note: Available are reduction sleeves for 12, 20, 25 and 32 mm bore diameters. Chucking forces will significantly reduce if reduction sleeves are used (ordered separately). |
Shipping Info
Package Weight
0.000
