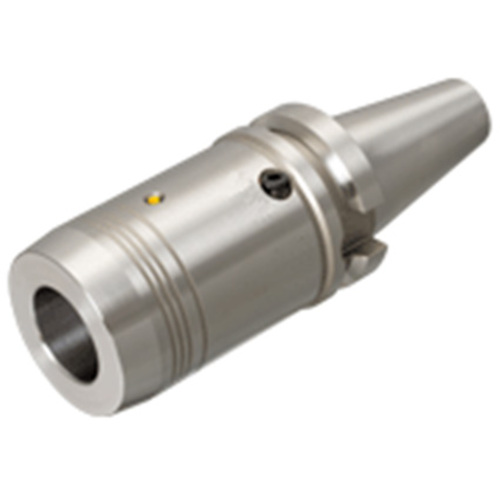

BT30HYDRO14X70
Hydraulic Holder ; 48 mm Body Length ; 34 mm Body Dia. ; 30. Shank Size ; 70 mm OAL ; Round Shank

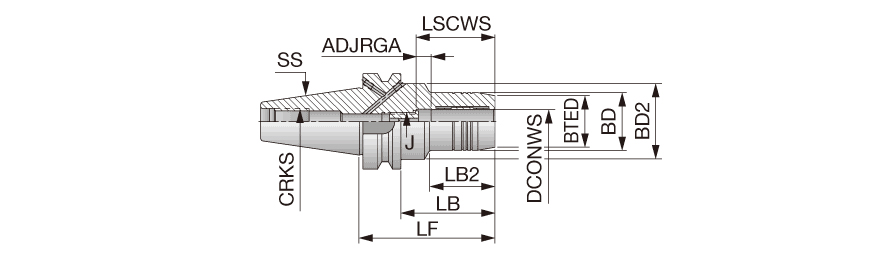

| Body Length (LB) | 48 mm | Shank Size (SS) | 30. |
| Body Length_2 (LB_2) | .0 mm | Application | | Tapered shape interface | |
| Thread Designation Inside (THID) | M10x1 | Tool Type | BT |
| Body Diameter (BD) | 34 mm | Measurement Type | Metric |
| Overall Length (OAL) | 70 mm | Body Taper End Diameter (BTED) | 30 |
| Clamping Length Workpiece Side (LSCWS) | 47 mm | Body Material | Steel |
| Shank Type | Round |
Product Features
| Family Description | TungHydro hydaulic endmill chuck holders with BT shank | Country of Origin | GERMANY |
| Remarks | Clamping wrench (wrench HYDRO HEX 4) should be ordered separately. Note: Available are reduction sleeves for 12, 20, 25 and 32 mm bore diameters. Chucking forces will significantly reduce if reduction sleeves are used (ordered separately) |
Shipping Info
Package Weight
1.482
