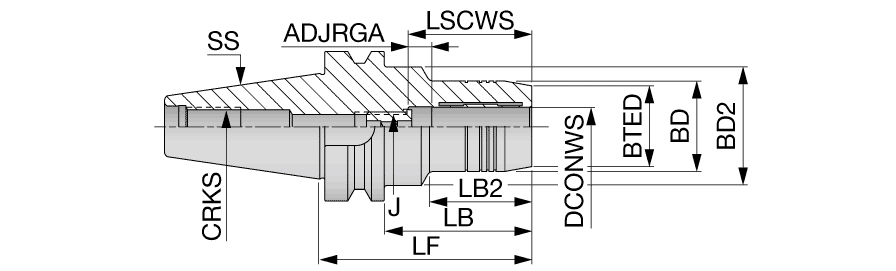

BT30FCHYDRO8X64
| Body Length (LB) | 42 mm | Shank Size (SS) | 30. |
| Body Length_2 (LB_2) | 29 mm | Application | | Tapered shape interface | |
| Thread Designation Inside (THID) | M6 | Tool Type | BT |
| Body Diameter (BD) | 28 mm | Measurement Type | Metric |
| Body Diameter_2 (BD_2) | 45 mm | Body Taper End Diameter (BTED) | 25 |
| Overall Length (OAL) | 64 mm | Body Material | Steel |
| Clamping Length Workpiece Side (LSCWS) | 37 mm |
Product Features

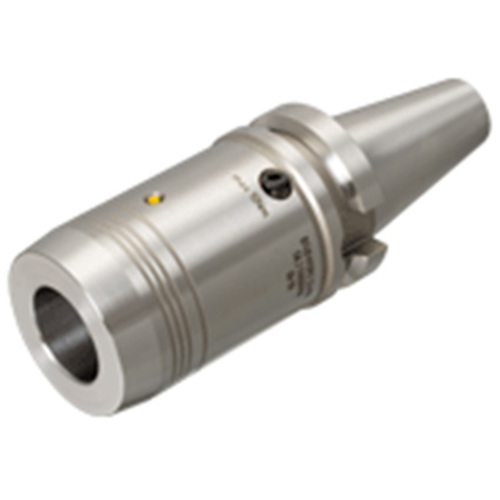

| Family Description | Hydraulic chuck holder with MAS-BT face contact form AD shank. | Country of Origin | GERMANY |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used. Reduction sleeves are available for 12 and 20 mm bore diameters (ordered separately). Clamping wrench (WRENCHHYDROHEX4) and test bar should be ordered separately. Applicable for 10 MPa coolant |
Shipping Info
Package Weight
0.000
