CAT40SEM1-1/4X2.125C

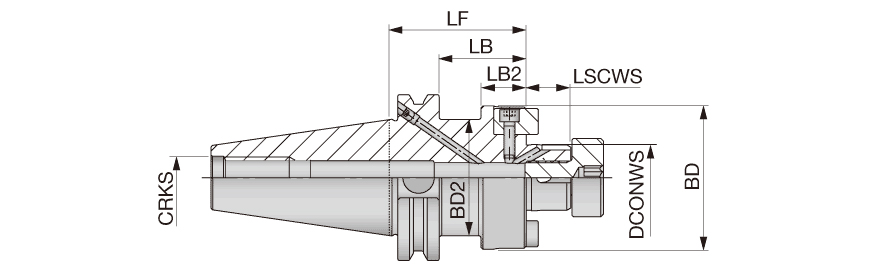

| Connection Diameter Workpiece Side (DCONWS) | 1-1/4″ | Connection Retention Knob Thread Size (CRKS) | 5/8-11 |
| Shank Size (SS) | CAT40 | Application | | Tapered shape interface | |
| Body Length (LB) | 1-3/8″ | Tool Type | Caterpillar |
| Body Diameter (BD) | 2.752″ | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/8″ | Body Material | Steel |
| Thread Size | FDA |
Product Features

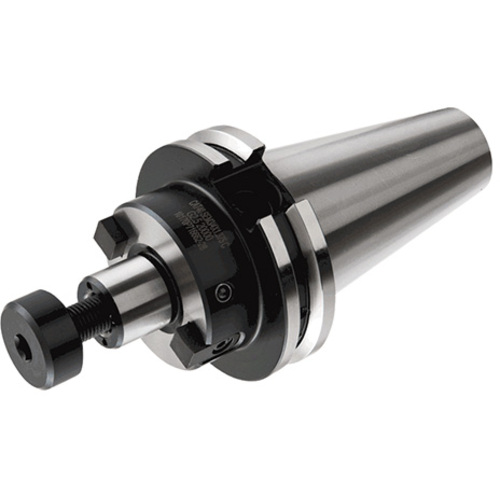

| Family Description | ISO 3937 shell mill holder with coolant holes and Caterpillar ADB tapered shank. Symmetrical design, dynamically balanced for high RPM machining. | Country of Origin | ITALY |
