DIN6987150SEM22X48X200C

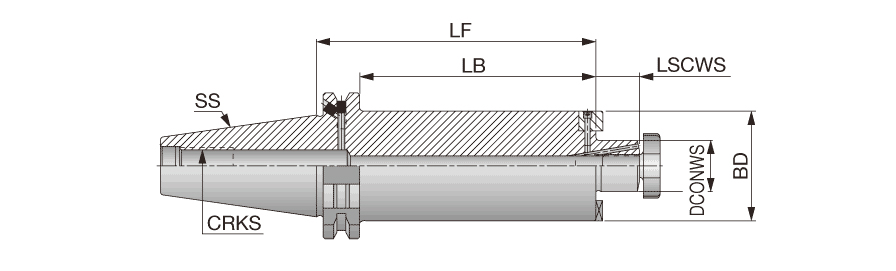

| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Connection Retention Knob Thread Size (CRKS) | M24 |
| Shank Size (SS) | SK50 | Application | | Tapered shape interface | |
| Body Length (LB) | 181 mm | Tool Type | DIN 69871 |
| Body Diameter (BD) | 48 mm | Measurement Type | Metric |
| Overall Length (OAL) | 200 mm | Body Material | Steel |
| Thread Size | FDA |
Product Features

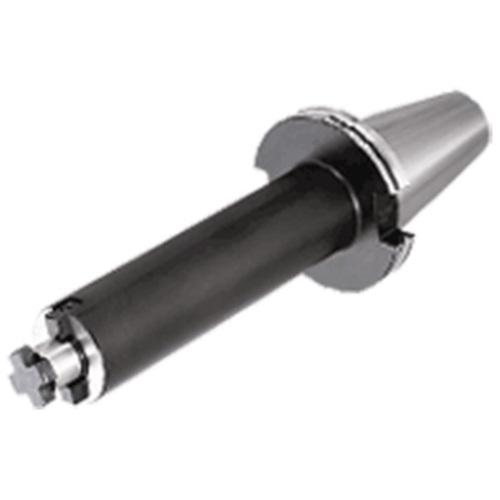

| Family Description | Extra long type Shell mill holder with coolant hole with DIN69871 shank | Country of Origin | INDIA |
| Remarks | If the "B type" option is required, the plug screw must the removed from the flange cooling hole. (use a 2 mm hex key.) |
Shipping Info
Package Weight
11.684
