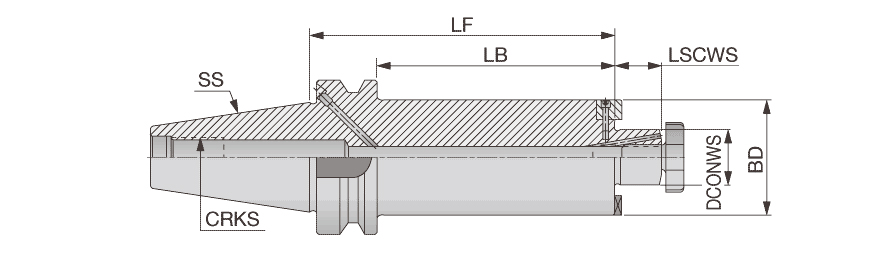

BT50SEM22X48X220C
| Connection Diameter Workpiece Side (DCONWS) | 22 mm | Connection Retention Knob Thread Size (CRKS) | M24 |
| Shank Size (SS) | BT50 | Application | | Tapered shape interface | |
| Body Length (LB) | 182 mm | Tool Type | BT |
| Body Diameter (BD) | 48 mm | Measurement Type | Metric |
| Overall Length (OAL) | 220 mm | Body Material | Steel |
| Thread Size | FDA |
Product Features
| Family Description | Shell mill holder with coolant hole with BT shank (Extra long type ) | Country of Origin | ITALY |
| Remarks | Applicable for 10 MPa coolant. When being used as a flange through type, the plug screw must be removed from the flange with a 2 mm hex key. Wrench is not included. |
Shipping Info
Package Weight
13.933
