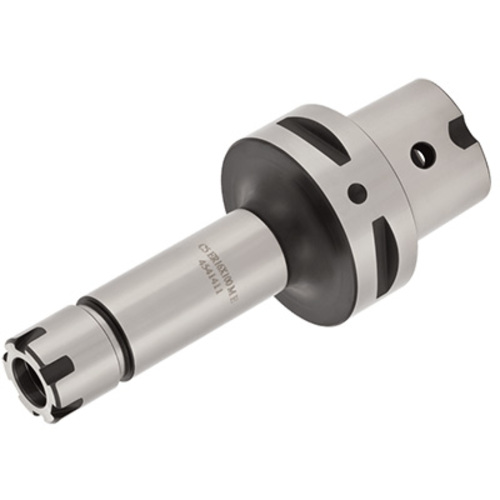

C5ER16X130M
Collet Chuck ; C5 Shank Size ; ER16 Connection Size ; 0.866″ Body Dia. ; 4.331″ Body Length ; 1.968″ Shank Dia. ; 0.02″ Min. Capacity ; 0.394″ Max. Capacity

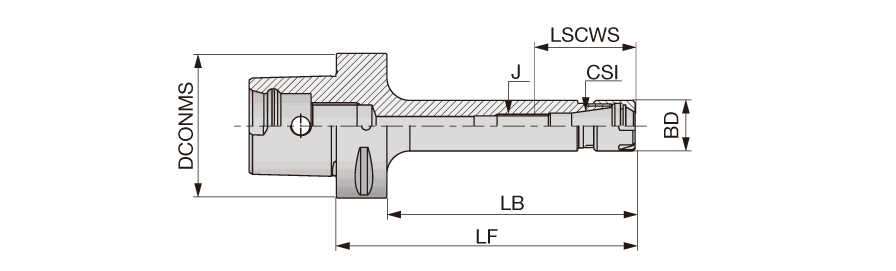

| Shank Size (SS) | C5 | Application | | Face contact interface | |
| Connection Size (CSI) | ER16 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 0.866″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Length (LB) | 4.331″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Measurement Type | Inch |
| Shank Length (LS) | 1.181″ | Body Material | Steel |
| Functional Length (LF) | 5.118″ |
Product Features
| Family Description | TungCap mini ER collet chucks holders (DIN 6499) | Country of Origin | ISRAEL |
| Remarks | Applicable for 7 MPa coolant. Wrench is not included |
Shipping Info
Package Weight
1.625
