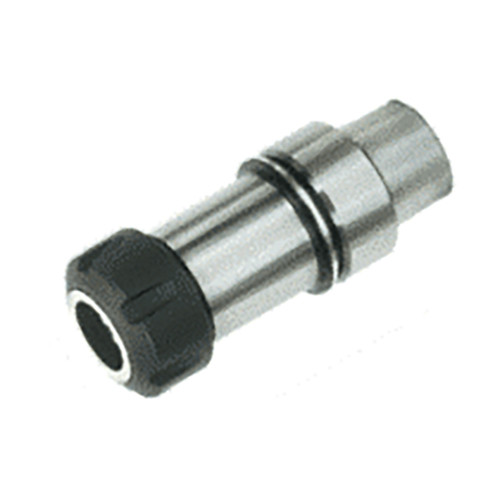

HSK E 63 ER32X 80
Collet Chuck ; HSK E 63 Shank Size ; ER32 Connection Size ; 1.969″ Body Dia. ; 2.126″ Body Length ; 2.48″ Shank Dia. ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity

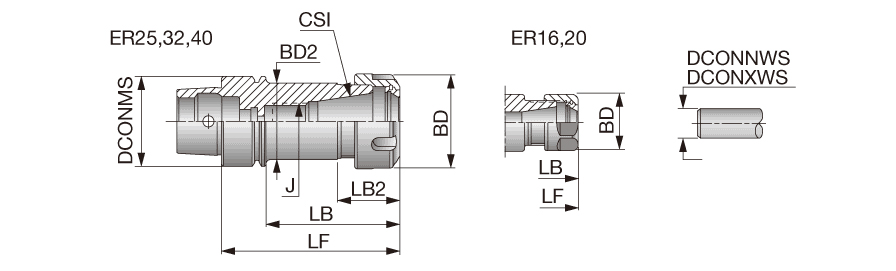

| Shank Size (SS) | HSK E 63 | Functional Length (LF) | 3.15″ |
| Connection Size (CSI) | ER32 | Application | | Face contact interface | |
| Body Diameter (BD) | 1.969″ | Tool Type | HSK |
| Body Diameter_3 (BD_3) | 1.591″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Length (LB) | 2.126″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Body Length_2 (LB_2) | 1.22″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Shank Length (LS) | 1.26″ |
Product Features
| Family Description | ER collet chucks with HSK-E shank | Country of Origin | Israel |
Shipping Info
Package Weight
2.396
