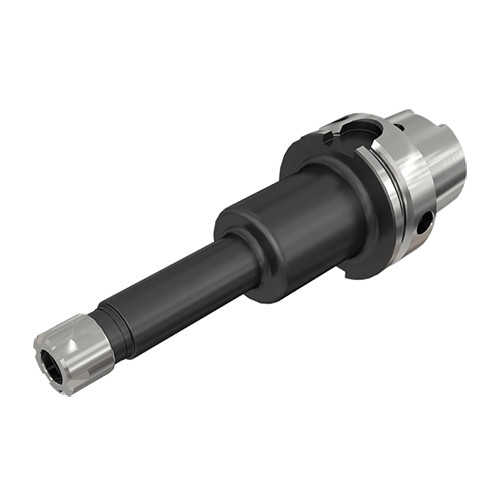

HSKA100ER16X100M
Collet Chuck ; HSK A 100 Shank Size ; ER16 Connection Size ; 0.866″ Body Dia. ; 2.795″ Body Length ; 3.937″ Shank Dia. ; 0.02″ Min. Capacity ; 0.394″ Max. Capacity

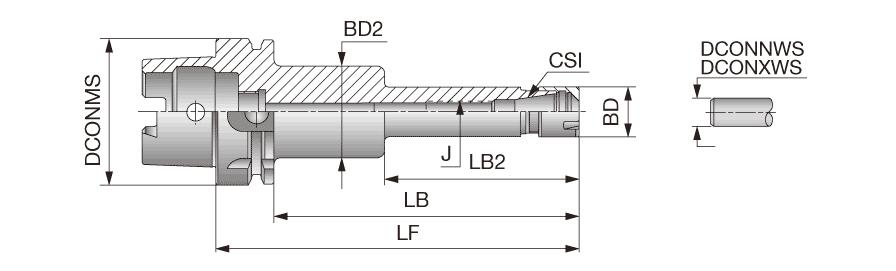

| Shank Size (SS) | HSK A 100 | Application | | Face contact interface | |
| Connection Size (CSI) | ER16 | Tool Type | HSK |
| Body Diameter (BD) | 0.866″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Length (LB) | 2.795″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Connection Diameter Machine Side (DCONMS) | 3.937″ | Measurement Type | Inch |
| Shank Length (LS) | 1.969″ | Body Material | Steel |
| Functional Length (LF) | 3.937″ |
Product Features
| Family Description | ER Mini-collet chucks with HSK-A shank | Country of Origin | ITALY |
Shipping Info
Package Weight
5.280
