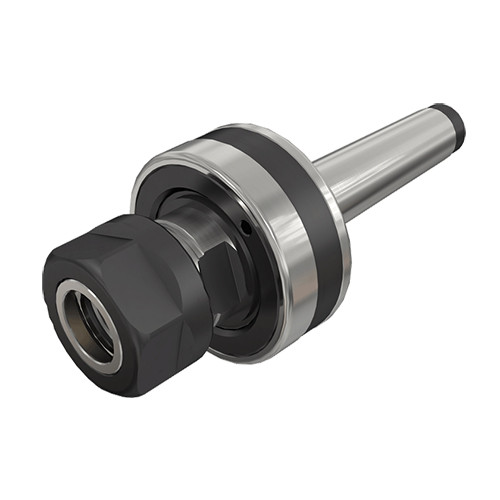

GFIMT3ER32
Collet Chuck ; MT 3 Shank Size ; ER32 Connection Size ; 50 mm Body Dia. ; 45.9 mm Body Length ; 2 mm Min. Capacity ; 20 mm Max. Capacity

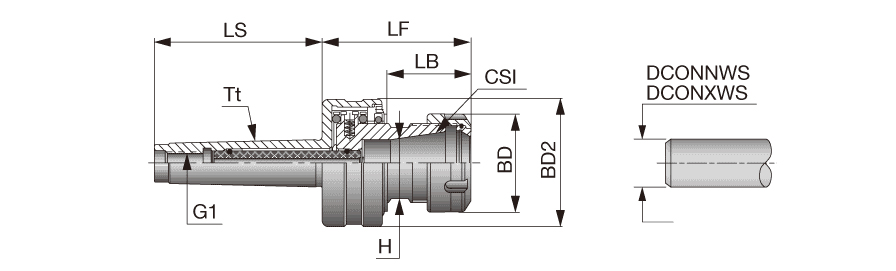

| Shank Size (SS) | MT 3 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER32 | Tool Type | Morse Taper |
| Body Diameter (BD) | 50 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Length (LB) | 45.9 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Shank Length (LS) | 81 mm | Measurement Type | Metric |
| Functional Length (LF) | 81.9 mm | Body Material | Steel |
Product Features
| Family Description | Floating Reamer DIN 6499 Collet Chucks with Morse Tapered Shanks | Country of Origin | ISRAEL |
| Remarks | Maximum 2000 min 1 |
Shipping Info
Package Weight
2.725
