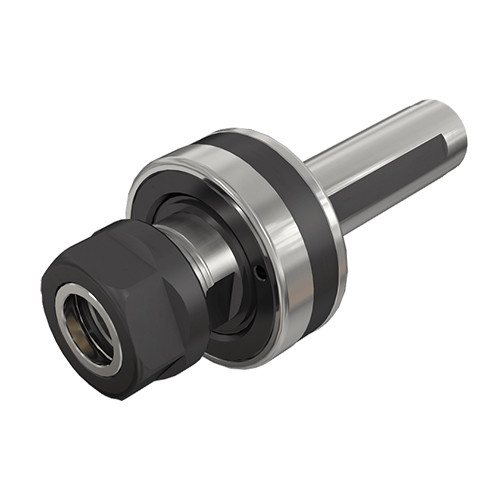

GFIST20ER20
Collet Chuck ; 20. Shank Size ; ER20 Connection Size ; 34 mm Body Dia. ; 34.5 mm Body Length ; 20 mm Shank Dia. ; 1 mm Min. Capacity ; 13 mm Max. Capacity

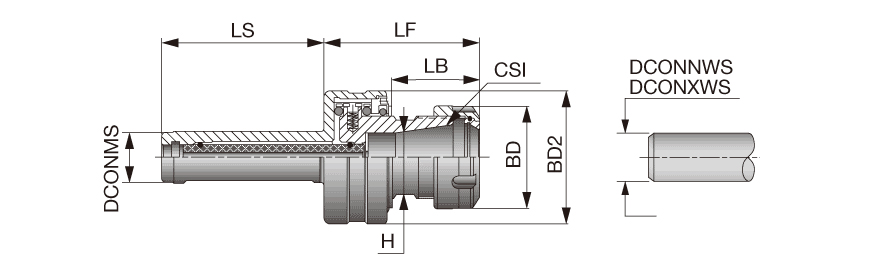

| Shank Size (SS) | 20. | Application | | Straight shape | |
| Connection Size (CSI) | ER20 | Tool Type | Cylindrical Shanks |
| Body Diameter (BD) | 34 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Length (LB) | 34.5 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Shank Length (LS) | 65 mm | Body Material | Steel |
| Functional Length (LF) | 55.5 mm |
Product Features
| Family Description | Floating Reamer DIN 6499 Collet Chucks with Cylindrical Shanks with a Clamping Flat | Country of Origin | ISRAEL |
| Remarks | Maximum 2000 min 1 |
Shipping Info
Package Weight
1.232
