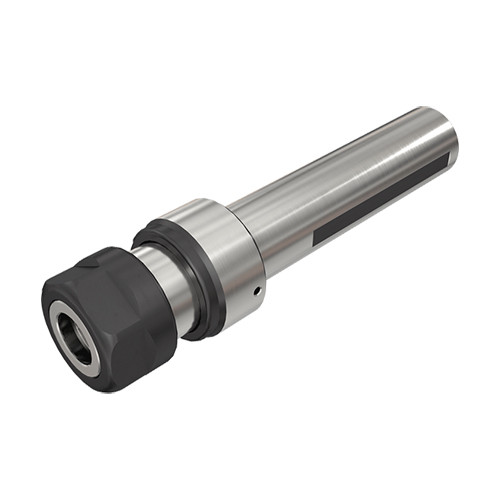

GTIER20ST20X80
Collet Chuck ; 20. Shank Size ; ER20 Connection Size ; 34 mm Body Dia. ; 28 mm Body Length ; 20 mm Shank Dia. ; 1 mm Min. Capacity ; 13 mm Max. Capacity

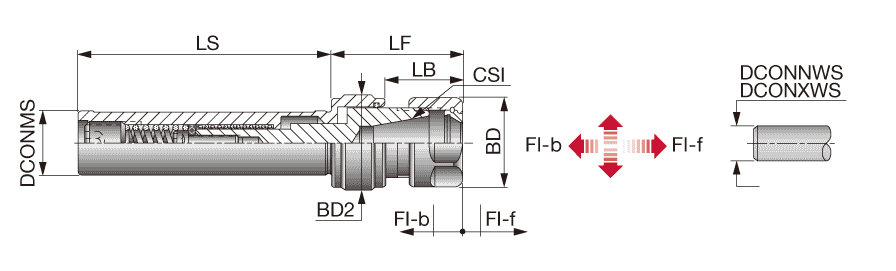

| Shank Size (SS) | 20. | Tool Type | Cylindrical Shanks |
| Connection Size (CSI) | ER20 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 34 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Body Length (LB) | 28 mm | Tap Max | M14 |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Tap Min | M4 |
| Shank Length (LS) | 80 mm | Measurement Type | Metric |
| Functional Length (LF) | 49 mm | Body Material | Steel |
| Application | | Straight shape | |
Product Features
| Family Description | TungGTI tapping attachment with Straight shank | Country of Origin | ISRAEL |
| Remarks | Wrench is not included. |
Shipping Info
Package Weight
0.842
Related Documentation
[Operation] @For through- and blind-hole tapping: @(1) Enter feed rate according to thread pitch (or 1-2 % lower). Set spindle to starting point with 0.08 mm clearance. @(2) Start spindle forward with right hand rotation until reaching desired depth. @(3) Stop feed and rotation and reverse to starting point.
