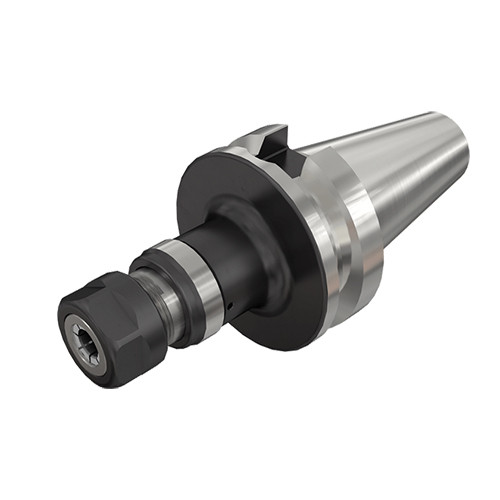

GTI BT50 ER32
Collet Chuck ; BT50 Shank Size ; ER32 Connection Size ; 1.969″ Body Dia. ; 3.039″ Body Length ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity

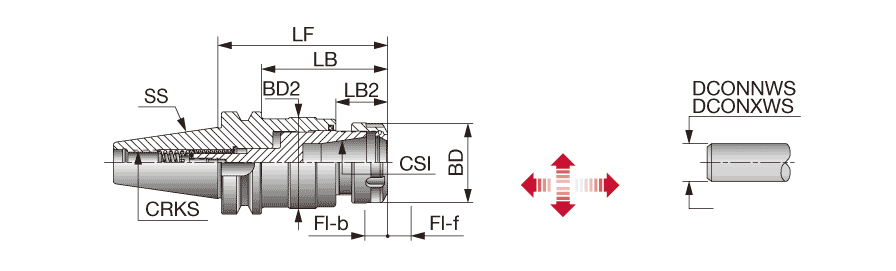

| Shank Size (SS) | BT50 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER32 | Tool Type | BT |
| Body Diameter (BD) | 1.969″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Diameter_3 (BD_3) | 2.224″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Body Length (LB) | 3.039″ | Tap Max | M20 |
| Body Length_2 (LB_2) | 1.299″ | Tap Min | M6 |
| Shank Length (LS) | 4.008″ | Measurement Type | Inch |
| Functional Length (LF) | 4.535″ | Body Material | Steel |
Product Features
| Family Description | GTIN ER tapping collet | Country of Origin | ISRAEL |
| Remarks | Wrench is not included. |
Shipping Info
Package Weight
10.406
Related Documentation
[Operation] @For through- and blind-hole tapping: @(1) Enter feed rate according to thread pitch (or 1-2 % lower). Set spindle to starting point with 0.08 mm clearance. @(2) Start spindle forward with right hand rotation until reaching desired depth. @(3) Stop feed and rotation and reverse to starting point.
