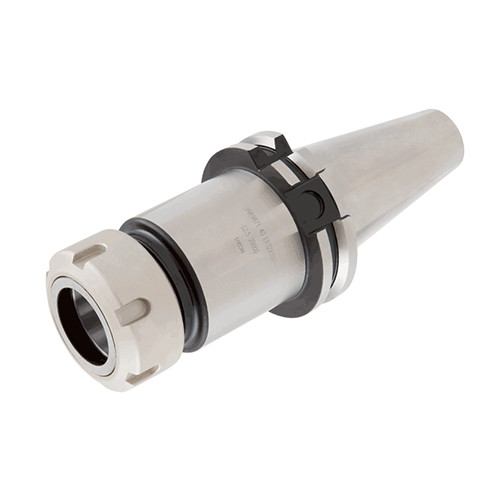

DIN6987150ER25X150
Collet Chuck ; SK50 Shank Size ; ER25 Connection Size ; 42 mm Body Dia. ; 130.9 mm Body Length ; 1 mm Min. Capacity ; 16 mm Max. Capacity

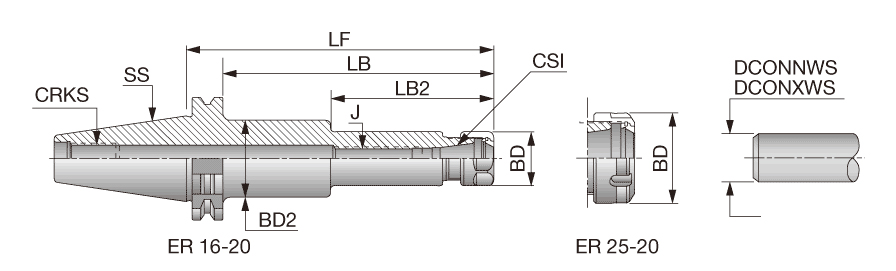

| Shank Size (SS) | SK50 | Functional Length (LF) | 150 mm |
| Connection Size (CSI) | ER25 | Application | | Tapered shape interface | |
| Body Diameter (BD) | 42 mm | Tool Type | DIN 69871 |
| Body Diameter_3 (BD_3) | 50 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Length (LB) | 130.9 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 16 mm |
| Body Length_2 (LB_2) | 80.9 mm | Measurement Type | Metric |
| Shank Length (LS) | 101.8 mm | Body Material | Steel |
Product Features
| Family Description | ER collet chucks with DIN69871 shank | Country of Origin | ITALY |
| Remarks | Add B for coolant through the flange. |
