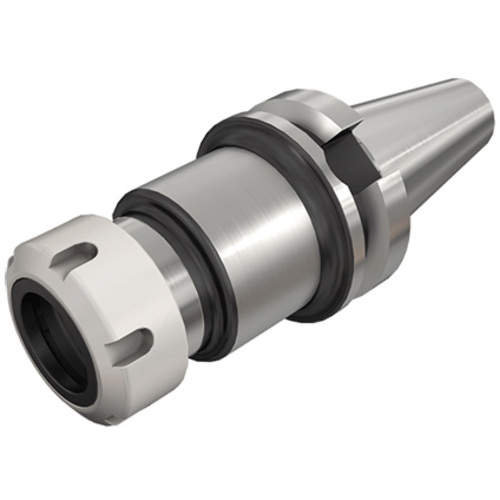

BT50ER16X200
Collet Chuck ; BT50 Shank Size ; ER16 Connection Size ; 1.102″ Body Dia. ; 6.378″ Body Length ; 0.02″ Min. Capacity ; 0.394″ Max. Capacity

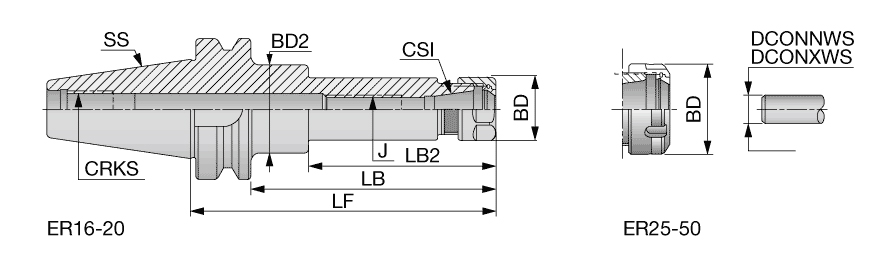

| Shank Size (SS) | BT50 | Functional Length (LF) | 7.874″ |
| Connection Size (CSI) | ER16 | Application | | Tapered shape interface | |
| Body Diameter (BD) | 1.102″ | Tool Type | BT |
| Body Diameter_3 (BD_3) | 1.575″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Length (LB) | 6.378″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Body Length_2 (LB_2) | 3.346″ | Measurement Type | Inch |
| Shank Length (LS) | 4.008″ | Body Material | Steel |

Product Features
| Family Description | ER collet chucks with BT shank | Country of Origin | Italy |
| Remarks | Add B for coolant through the flange. Wrench is not included. |
Shipping Info
Package Weight
10.496
