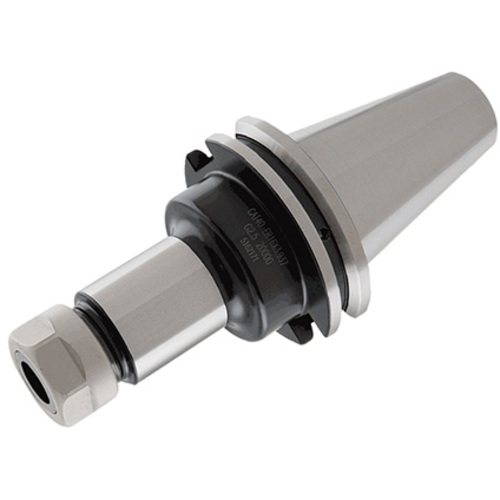

CAT50FCER32X4.000
Collet Chuck ; CAT50-FC Shank Size ; ER32 Connection Size ; 1.968″ Body Dia. ; 3-1/4″ Body Length ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity

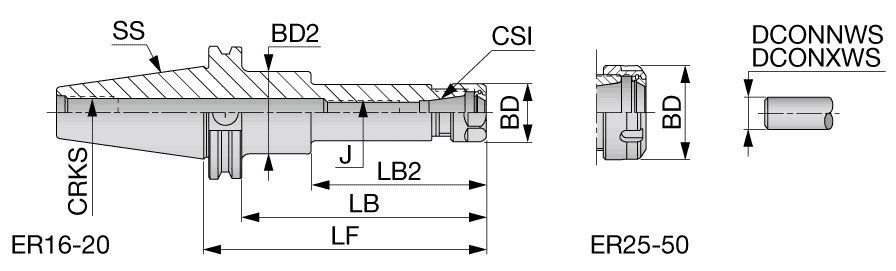

| Shank Size (SS) | CAT50-FC | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER32 | Tool Type | Caterpillar |
| Body Diameter (BD) | 1.968″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Length (LB) | 3-1/4″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Body Length_2 (LB_2) | 2.62″ | Measurement Type | Inch |
| Shank Length (LS) | 4″ | Body Material | Steel |
| Functional Length (LF) | 4″ |
Product Features
| Family Description | ER collet chuck holder with Caterpillar face contact AD tapered shank. | Country of Origin | ITALY |
| Remarks | Applicable for 10 MPa coolant. |
Shipping Info
Package Weight
0.000
