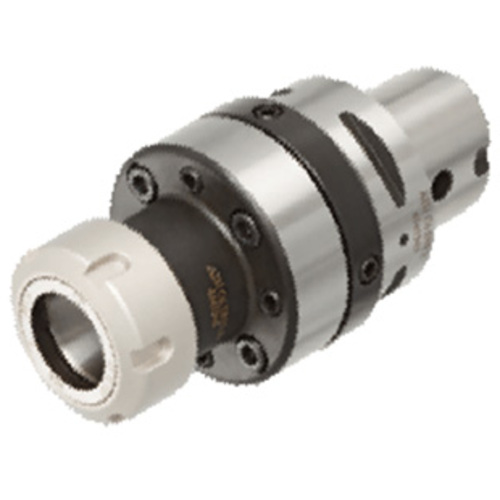

ADJC5ER32
Collet Chuck ; C5 Shank Size ; ER32 Connection Size ; 2.756″ Body Dia. ; 3.74″ Body Length ; 1.968″ Shank Dia. ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity

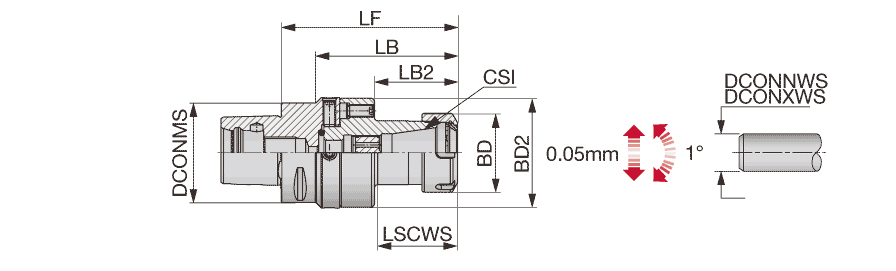

| Shank Size (SS) | C5 | Functional Length (LF) | 4.528″ |
| Connection Size (CSI) | ER32 | Application | | Face contact interface | |
| Body Diameter (BD) | 2.756″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 3.74″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Length_2 (LB_2) | 2.067″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Measurement Type | Inch |
| Shank Length (LS) | 1.181″ | Body Material | Steel |
Product Features
| Family Description | TungCap ER collet chucks with center alignment | Country of Origin | ISRAEL |
| Remarks | Applicable for 7 MPa coolant. Wrench is not included |
Shipping Info
Package Weight
4.542
