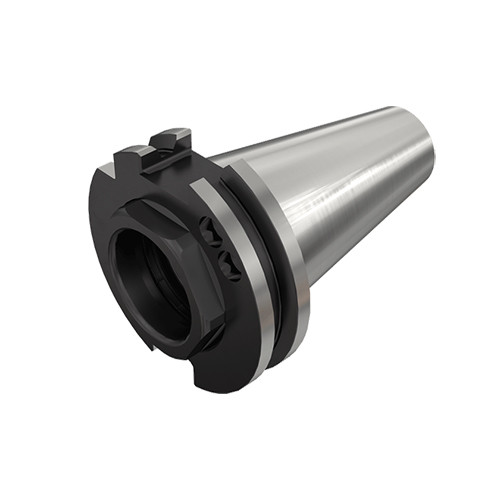

DIN6987140ER32SHORT
Collet Chuck ; SK40 Shank Size ; ER32 Connection Size ; 40 mm Body Dia. ; 6 mm Body Length ; 2 mm Min. Capacity ; 20 mm Max. Capacity

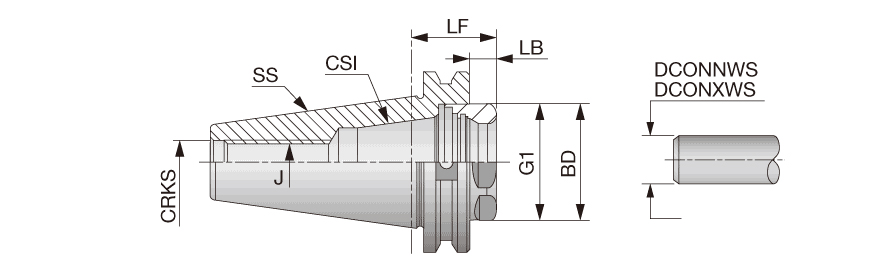

| Shank Size (SS) | SK40 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER32 | Tool Type | DIN 69871 |
| Body Diameter (BD) | 40 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Length (LB) | 6 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Shank Length (LS) | 68.4 mm | Measurement Type | Metric |
| Functional Length (LF) | 25.1 mm | Body Material | Steel |
Product Features
| Family Description | TungShort collet chucks with DIN69871 shank | Country of Origin | TURKEY |
| Remarks | Add B for coolant through the flange. |
Shipping Info
Package Weight
0.551
