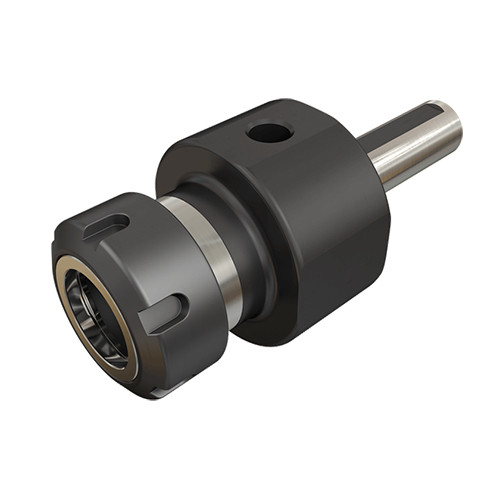

ST40X75ER32S
Collet Chuck ; 40. Shank Size ; ER32 Connection Size ; 50 mm Body Dia. ; 41 mm Body Length ; 40 mm Shank Dia. ; 2 mm Min. Capacity ; 20 mm Max. Capacity

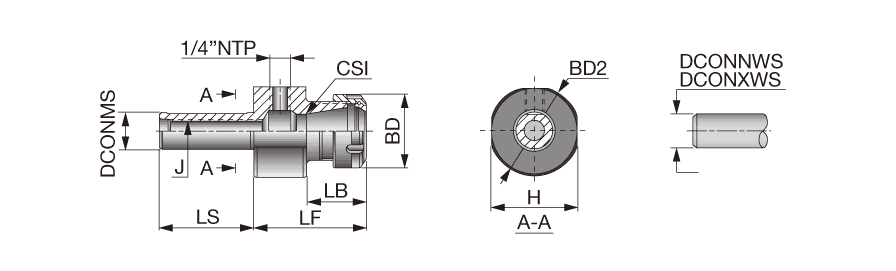

| Shank Size (SS) | 40. | Functional Length (LF) | 77 mm |
| Connection Size (CSI) | ER32 | Application | | Straight shape | |
| Body Diameter (BD) | 50 mm | Tool Type | Cylindrical Shanks |
| Body Diameter_3 (BD_3) | 63 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Length (LB) | 41 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Shank Length (LS) | 75 mm | Body Material | Steel |
Product Features
| Family Description | ER collet chucks with internal coolant | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
