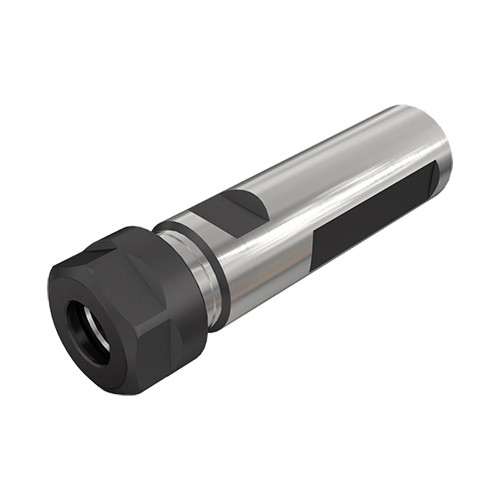

ST25X100ER20
Collet Chuck ; 25. Shank Size ; ER20 Connection Size ; 34 mm Body Dia. ; 25 mm Shank Dia. ; 1 mm Min. Capacity ; 13 mm Max. Capacity

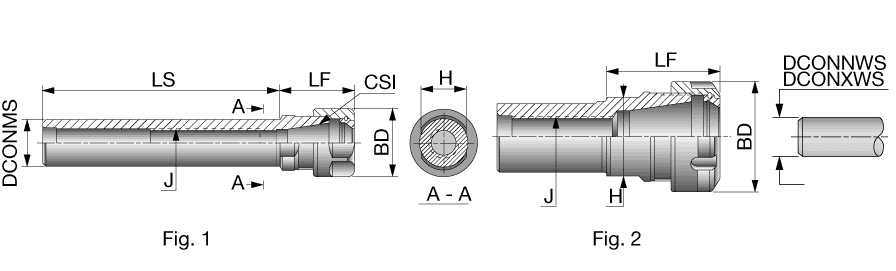

| Shank Size (SS) | 25. | Application | | Straight shape | |
| Connection Size (CSI) | ER20 | Tool Type | Cylindrical Shanks |
| Body Diameter (BD) | 34 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Shank Length (LS) | 100 mm | Measurement Type | Metric |
| Functional Length (LF) | 36 mm | Body Material | Steel |

Product Features
| Family Description | ER collet chucks with Straight shank | Country of Origin | GERMANY |
| Remarks | F indicates a flat on the shank. |
Shipping Info
Package Weight
0.807
