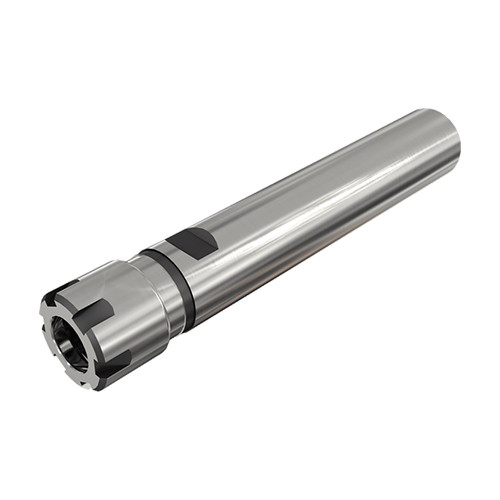

ST12X80ER11M
Collet Chuck ; 12. Shank Size ; ER11 Connection Size ; 16 mm Body Dia. ; 12 mm Shank Dia. ; 0.5 mm Min. Capacity ; 7 mm Max. Capacity

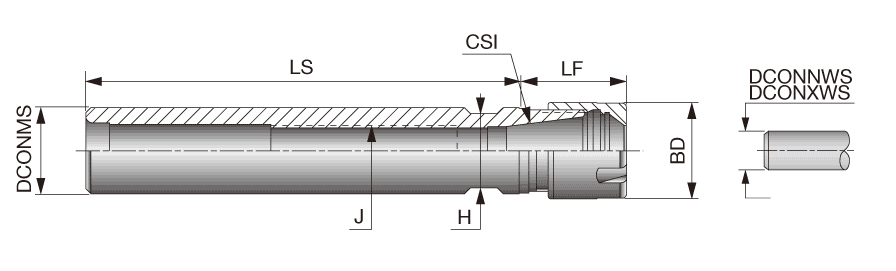

| Shank Size (SS) | 12. | Application | | Straight shape | |
| Connection Size (CSI) | ER11 | Tool Type | Cylindrical Shanks |
| Body Diameter (BD) | 16 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Shank Length (LS) | 80 mm | Measurement Type | Metric |
| Functional Length (LF) | 26.5 mm | Body Material | Steel |

Product Features
| Family Description | ER Mini-collet chucks with Straight shank | Country of Origin | GERMANY |
| Remarks | F indicates a flat on the shank. |
Shipping Info
Package Weight
0.218
