ADJ HSK A 100 D70 ER32
Collet Chuck ; HSK A 100 Shank Size ; ER32 Connection Size ; 1.968″ Body Dia. ; 3.976″ Body Length ; 3.937″ Shank Dia. ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity

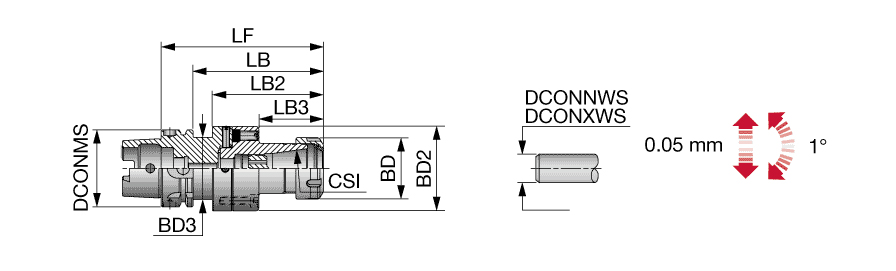

| Shank Size (SS) | HSK A 100 | Functional Length (LF) | 5.118″ |
| Connection Size (CSI) | ER32 | Application | | Face contact interface | |
| Body Diameter (BD) | 1.968″ | Tool Type | HSK |
| Body Diameter_3 (BD_3) | 1.811″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Length (LB) | 3.976″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Connection Diameter Machine Side (DCONMS) | 3.937″ | Measurement Type | Inch |
| Shank Length (LS) | 1.968″ | Body Material | Steel |
Product Features
| Family Description | ER Collet Chucks with Center Alignment for HSK-A Shanks | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
