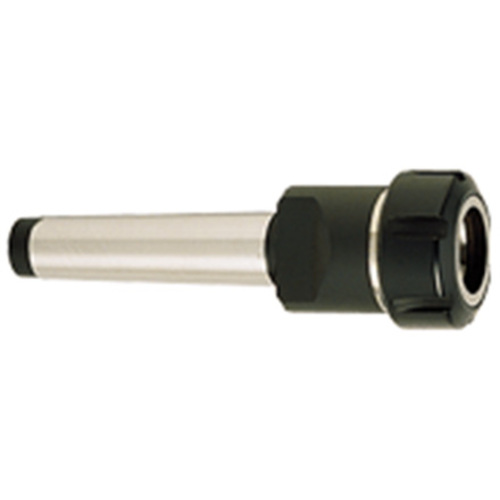

MT2ER25X52
Collet Chuck ; MT 2 Shank Size ; ER25 Connection Size ; 42 mm Body Dia. ; 1 mm Min. Capacity ; 16 mm Max. Capacity

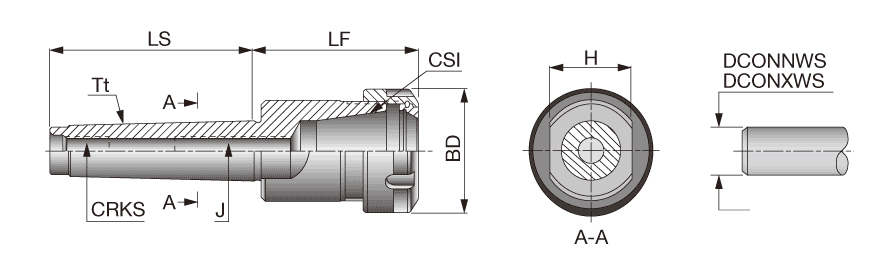

| Shank Size (SS) | MT 2 | Tool Type | Morse Taper |
| Connection Size (CSI) | ER25 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 42 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 16 mm |
| Shank Length (LS) | 64 mm | Measurement Type | Metric |
| Functional Length (LF) | 52 mm | Body Material | Steel |
| Application | | Tapered shape interface | |
Product Features
| Family Description | ER collet chuck holder with Morse Taper | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
