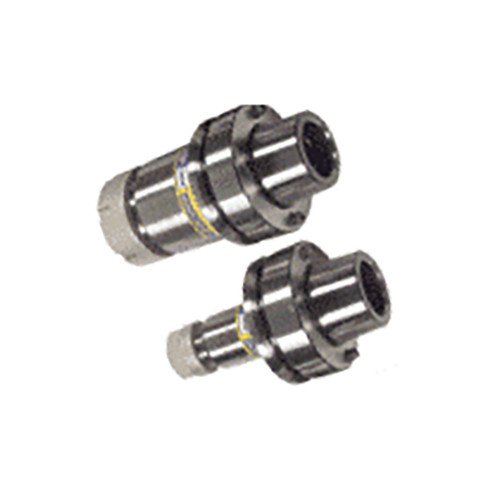

HSKFM63ER16X160
Collet Chuck ; HSK F 63 Shank Size ; ER16 Connection Size ; 1.102″ Body Dia. ; 5.276″ Body Length ; 2.48″ Shank Dia. ; 0.02″ Min. Capacity ; 0.394″ Max. Capacity

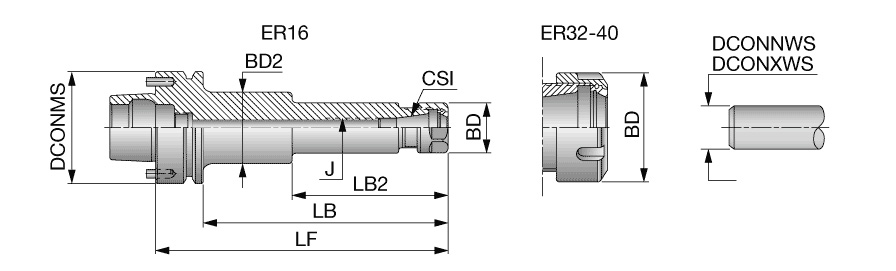

| Shank Size (SS) | HSK F 63 | Functional Length (LF) | 6.299″ |
| Connection Size (CSI) | ER16 | Application | | Face contact interface | |
| Body Diameter (BD) | 1.102″ | Tool Type | HSK |
| Body Diameter_3 (BD_3) | 1.575″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Body Length (LB) | 5.276″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Body Length_2 (LB_2) | 3.37″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Shank Length (LS) | 0.984″ |
Product Features
| Family Description | ER collet chucks with HSK-FM shank | Country of Origin | ISRAEL |
| Remarks | The driving pins can be removed, turning the toolholder into a standard HSK"F63″ type. |
Shipping Info
Package Weight
0.000
