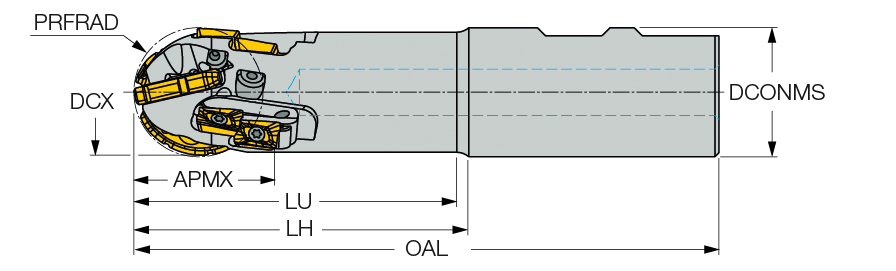

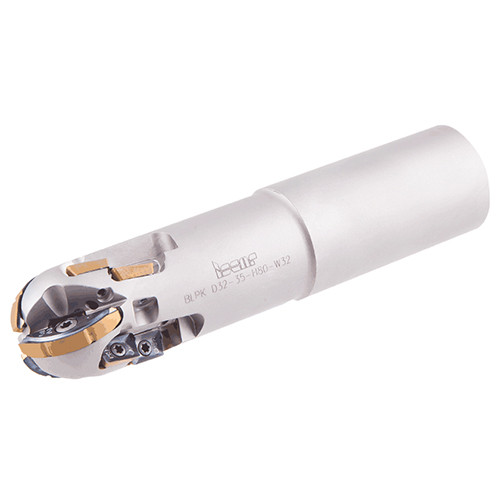

BLPK D32-35-H80-W32
Indexable End Mill; 32 mm Dia. × 35 mm LOC × 32 mm Shank Dia. × 145 mm OAL × 80 mm LU ; 3 FL ; Weldon Shank
| Cutting Diameter (DC/DCX) | 32 mm | Tool Type | Ball nose endmills |
| Cutting Diameter (DC) | 32 mm | Usable Length (LU) | 80 mm |
| Cutting Item Count (CICT) | 9 | Flute Count (NOF) | 3 |
| Depth of Cut Maximum (APMX) | 35 mm | Corner Radius (RE) | 16 mm |
| Overall Length (OAL) | 145 mm | Body Half Taper Angle (BHTA) | 180 Degrees |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Weight of Item (WT) | 0.64 Kg | Connection Code Machine Side (CCMS) | Weldon |
| Head Length (LH) | 83 mm | Cutting Diameter Maximum (DCX) | 32 mm |
Product Features
| Family Description | Three flute fully effective long edged, ball nose endmills. Designed for rough and semi-finish milling of sculptured surfaces, especially with steep and perpendicular profiles. Can be used for up and down ramping. | Country of Origin | Israel |

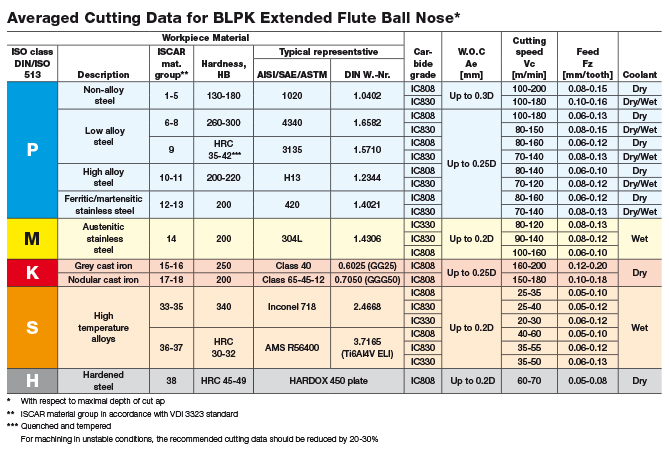

| Remarks | For detailed cutting recommendations and adaptation, click on More Info |
Shipping Info
Package Weight
1.777
