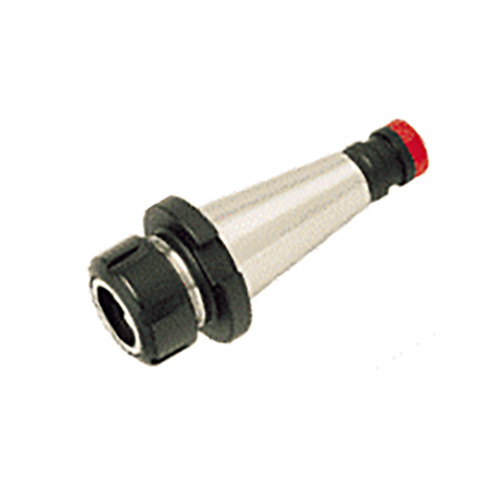

DIN208040ER16X100
Collet Chuck ; DIN2080 SK40 Shank Size ; ER16 Connection Size ; 28 mm Body Dia. ; 88.4 mm Body Length ; 0.5 mm Min. Capacity ; 10 mm Max. Capacity

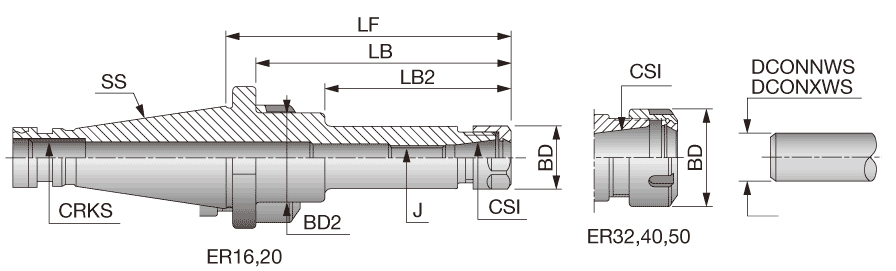

| Shank Size (SS) | DIN2080 SK40 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER16 | Tool Type | DIN 2080 |
| Body Diameter (BD) | 28 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Length (LB) | 88.4 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Shank Length (LS) | 93.4 mm | Measurement Type | Metric |
| Functional Length (LF) | 100 mm | Body Material | Steel |
Product Features
| Family Description | ER collet chucks with DIN2080 shank | Country of Origin | ITALY |
Shipping Info
Package Weight
0.000
