ST20X55ER16MFD
Collet Chuck ; 20. Shank Size ; ER16 Connection Size ; 22 mm Body Dia. ; 20 mm Shank Dia. ; 0.5 mm Min. Capacity ; 10 mm Max. Capacity

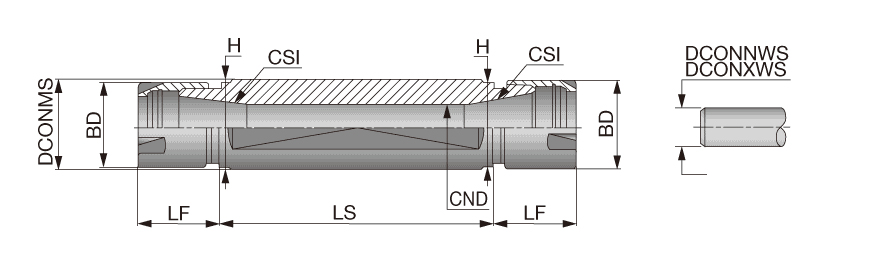

| Shank Size (SS) | 20. | Application | | Straight shape | |
| Connection Size (CSI) | ER16 | Tool Type | Cylindrical Shanks |
| Body Diameter (BD) | 22 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Shank Length (LS) | 55 mm | Measurement Type | Metric |
| Functional Length (LF) | 25 mm | Body Material | Steel |
Product Features

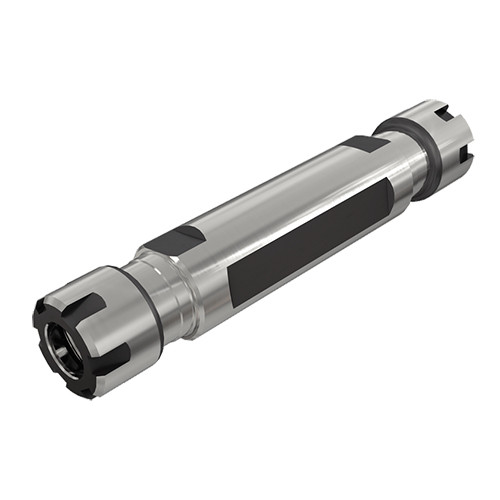

| Family Description | Double ended Mini-collet chucks with flat cotter | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.276
