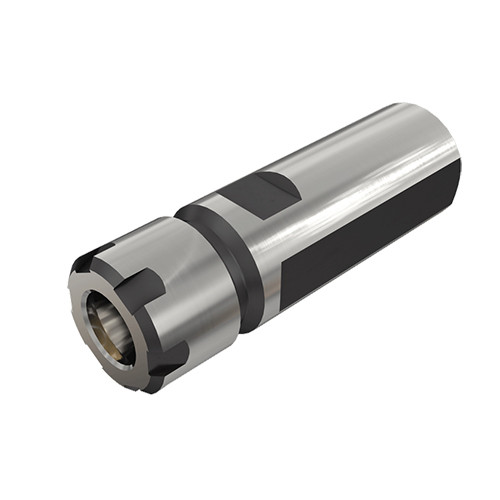

ST22X70ER25MF
Collet Chuck ; 22. Shank Size ; ER25 Connection Size ; 35 mm Body Dia. ; 22 mm Shank Dia. ; 1 mm Min. Capacity ; 16 mm Max. Capacity

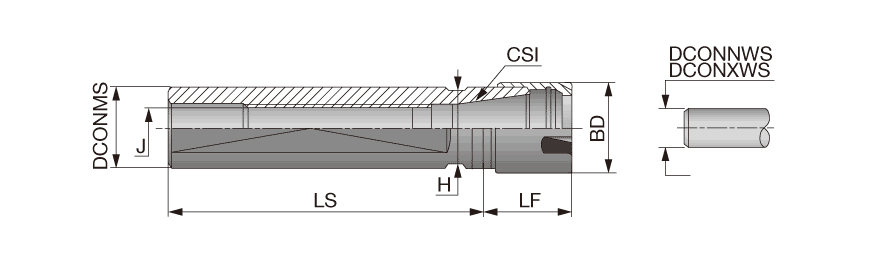

| Shank Size (SS) | 22. | Application | | Straight shape | |
| Connection Size (CSI) | ER25 | Tool Type | Cylindrical Shanks |
| Body Diameter (BD) | 35 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 16 mm |
| Shank Length (LS) | 70 mm | Measurement Type | Metric |
| Functional Length (LF) | 47 mm | Body Material | Steel |

Product Features
| Family Description | ER Mini-collet chucks with flat cotter for SWISS type machines | Country of Origin | Israel |
Shipping Info
Package Weight
0.009
