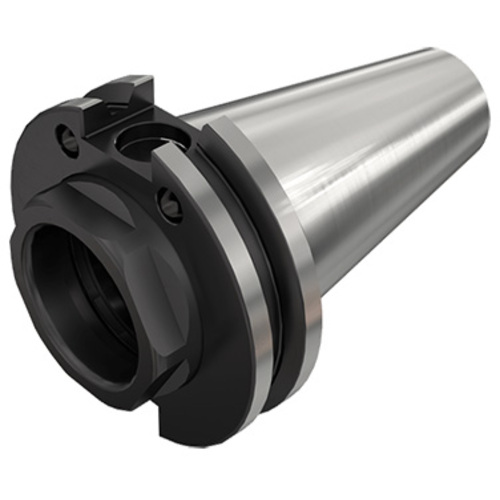

CAT50ER40SHORT
Collet Chuck ; CAT50 Shank Size ; ER40 Connection Size ; 1.969″ Body Dia. ; 0.374″ Body Length ; 0.12″ Min. Capacity ; 1.025″ Max. Capacity

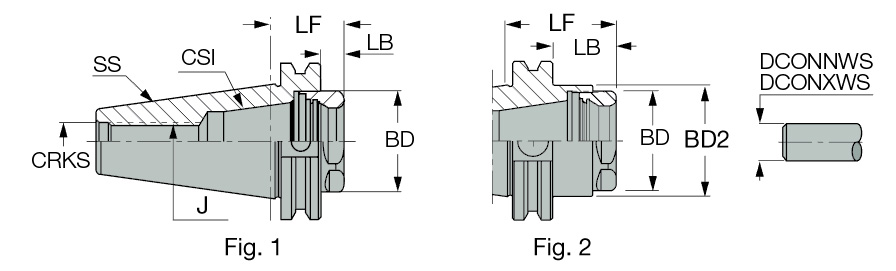

| Shank Size (SS) | CAT50 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER40 | Tool Type | Caterpillar |
| Body Diameter (BD) | 1.969″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.12″ |
| Body Length (LB) | 0.374″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.025″ |
| Shank Length (LS) | 4″ | Measurement Type | Inch |
| Functional Length (LF) | 1.124″ | Body Material | Steel |
Product Features
| Family Description | TungShort, DIN 6499 ER short collet chuck holder with Caterpillar form AD tapered shank. | Country of Origin | TURKEY |
