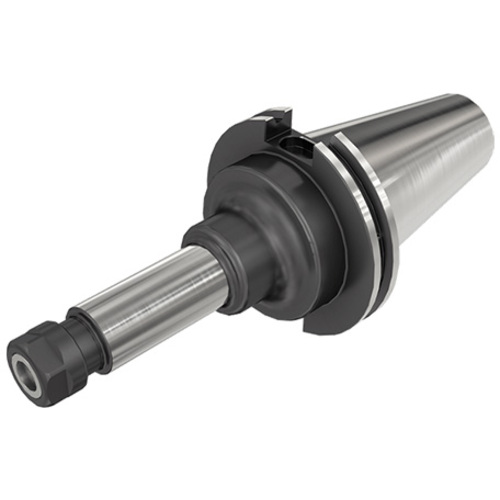

CAT40ER40X3.359B
Collet Chuck ; CAT40 Shank Size ; ER40 Connection Size ; 2.48″ Body Dia. ; 2.609″ Body Length ; 0.12″ Min. Capacity ; 1.025″ Max. Capacity

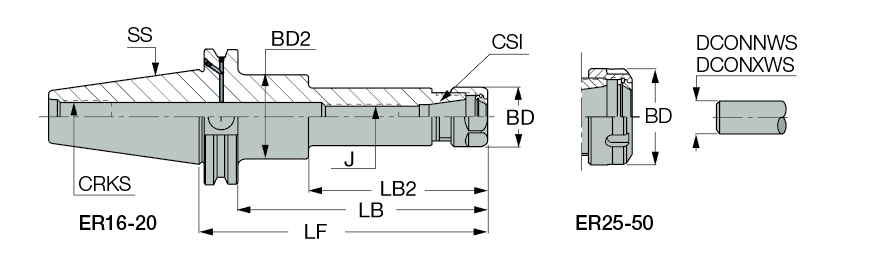

| Shank Size (SS) | CAT40 | Functional Length (LF) | 3.359″ |
| Connection Size (CSI) | ER40 | Application | | Tapered shape interface | |
| Body Diameter (BD) | 2.48″ | Tool Type | Caterpillar |
| Body Diameter_3 (BD_3) | 1.752″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.12″ |
| Body Length (LB) | 2.609″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.025″ |
| Body Length_2 (LB_2) | 0″ | Measurement Type | Inch |
| Shank Length (LS) | 2.687″ | Body Material | Steel |
Product Features

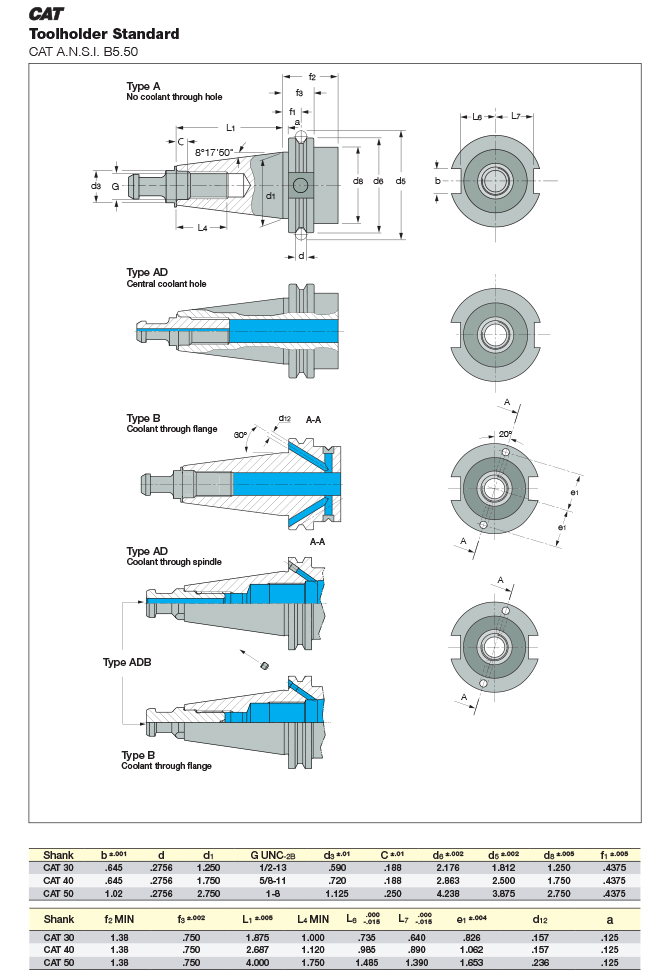

| Family Description | DIN 6499 ER collet chuck holder with Caterpillar form ADB tapered shank. | Country of Origin | ITALY |
Shipping Info
Package Weight
0.000
